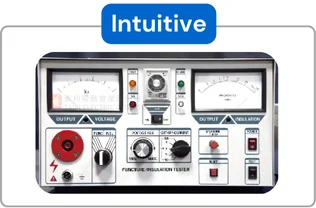

直觀亦操作之控制面板設計
Clear Control Panel
配備設計精良的直觀控制面板，採用直觀的介面佈局，讓操作人員能夠輕鬆掌握各項功能，並大幅提升整體使用體驗，特別適合在生產線或實驗室環境中快速上手。
Features an intuitive and user-friendly control interface for seamless operation and enhanced user experience.

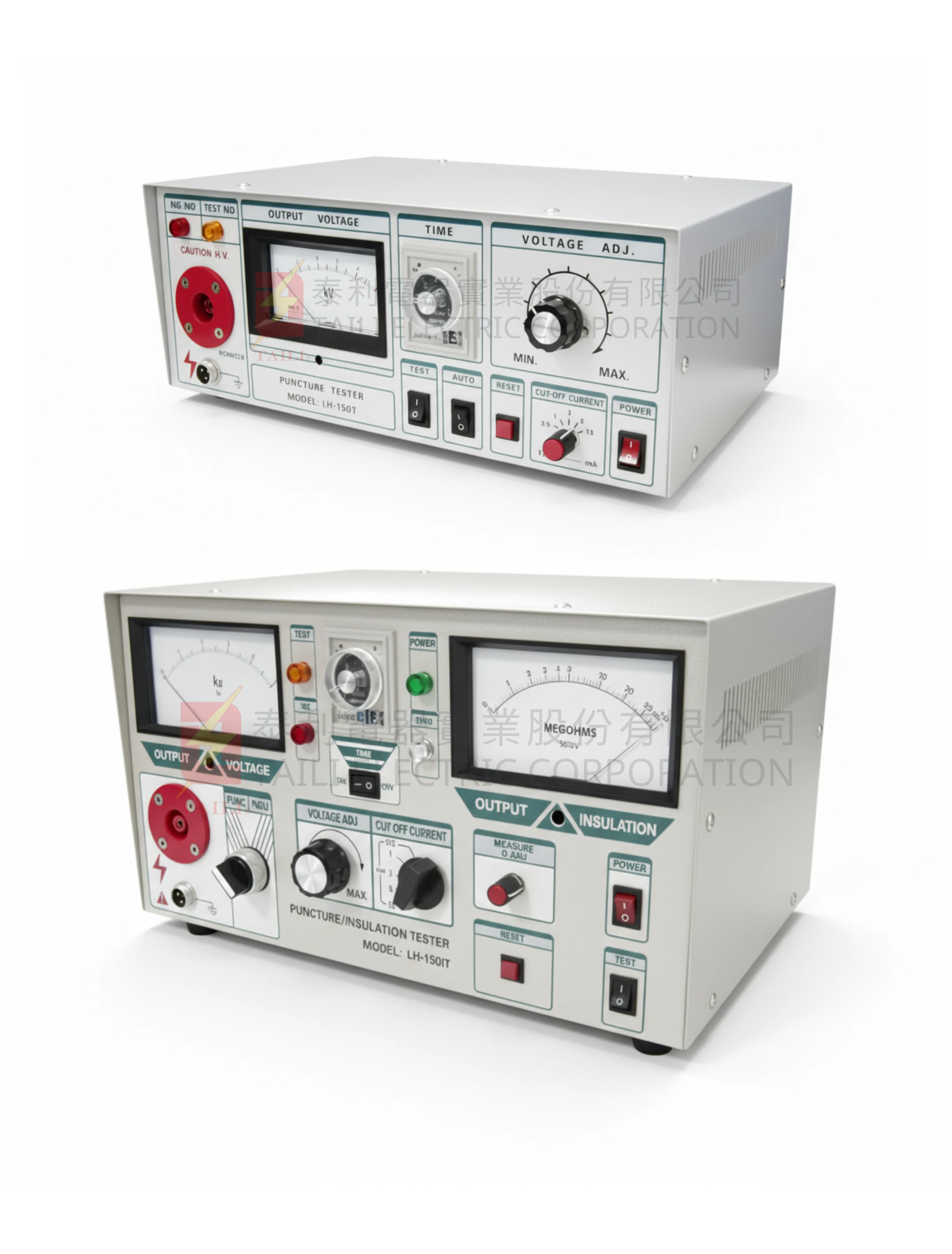

耐壓/絕緣測試器
Puncture/Insulation Tester
TL-LH
泰利電器之耐壓/絕緣測試器（TL-LH）具備多項電器安全測試功能， 亦提供可靠的檢測能力，保障設備的安全高效運行。耐壓測試器: AC 0~5000V可調；絕緣測試器: DC 500V / 250MΩ，可有效評估產品的絕緣強度與耐壓極限，是各類電器產品在生產線與品管階段進行安規檢驗的專用儀器。其絕緣與耐壓測試條件完整，適用於研發、品管、實驗與生產等各種需求，並具備單機操作、定時控制、遠端遙控、自動判定與自動測試等功能，為申請各國安全標準認證所必備之專業測試設備。具備多項電氣安全測試功能，可有效評估產品的絕緣強度與耐壓極限，為生產線及品管專用安規檢驗之各類電器產品之檢驗儀器，絕緣及耐壓測試條件，研發、品管、實驗、生產必備，可單機、定時、遙控、判定、自動測試，申請任何國家安全標準用儀器。
The TL-LH puncture tester and insulation tester are advanced tools designed to evaluate the puncture resilience and insulation performance of materials like rubber and plastic films or wires and conductors. The puncture tester uses a controlled foreign object to pierce samples, gradually increasing force until penetration, with a precision probe recording the breach pressure to assess strength—results also depend on the object’s sharpness. The insulation tester measures insulation resistance (IR) to detect potential damage that could lead to current leakage, ensuring electrical safety, with regular testing recommended due to natural degradation in harsh environments.
TAILI’s testers provide reliable flaw detection for safe, efficient equipment operation. Manufactured by TAILI ELECTRIC CORPORATION, a leading provider of top-quality testing solutions, these instruments are optimized for production lines and quality control (QC). (Specs: Puncture tester, adjustable AC 0~5000V; Insulation tester, DC 500V / 250MΩ.) They support industrial safety, insulation, and Hi-Pot testing for R&D, experiments, and production, offering standalone, timed, remote-controlled, determination, and automated modes to meet global safety standards.
產品型錄 Catalog
( 特殊規格皆可訂製 Special specifications can be customized )

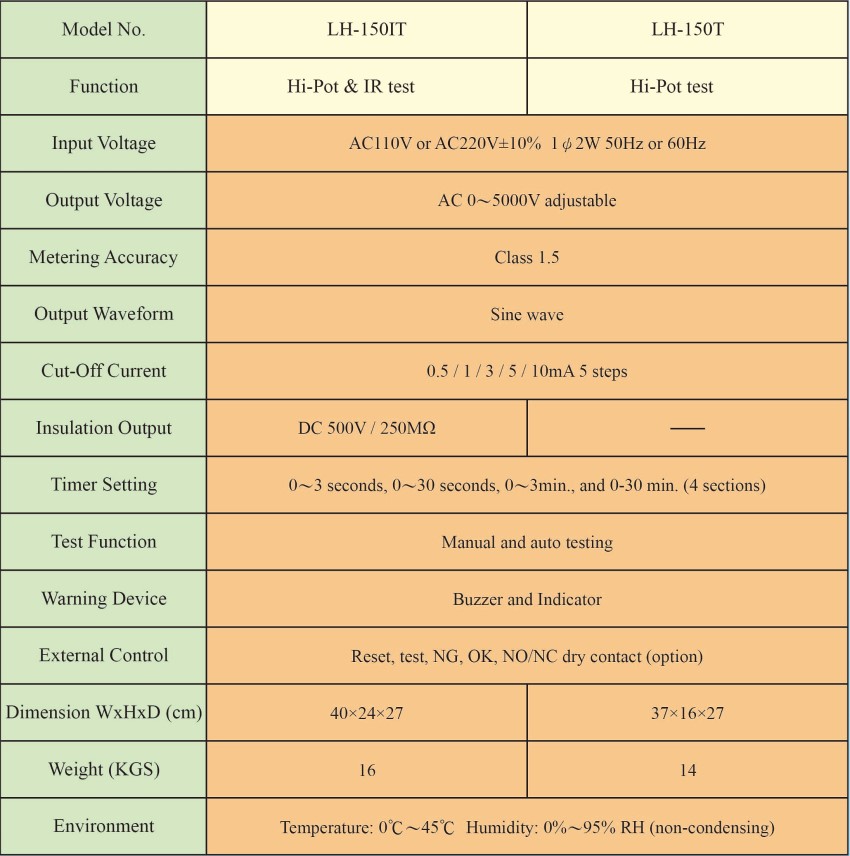

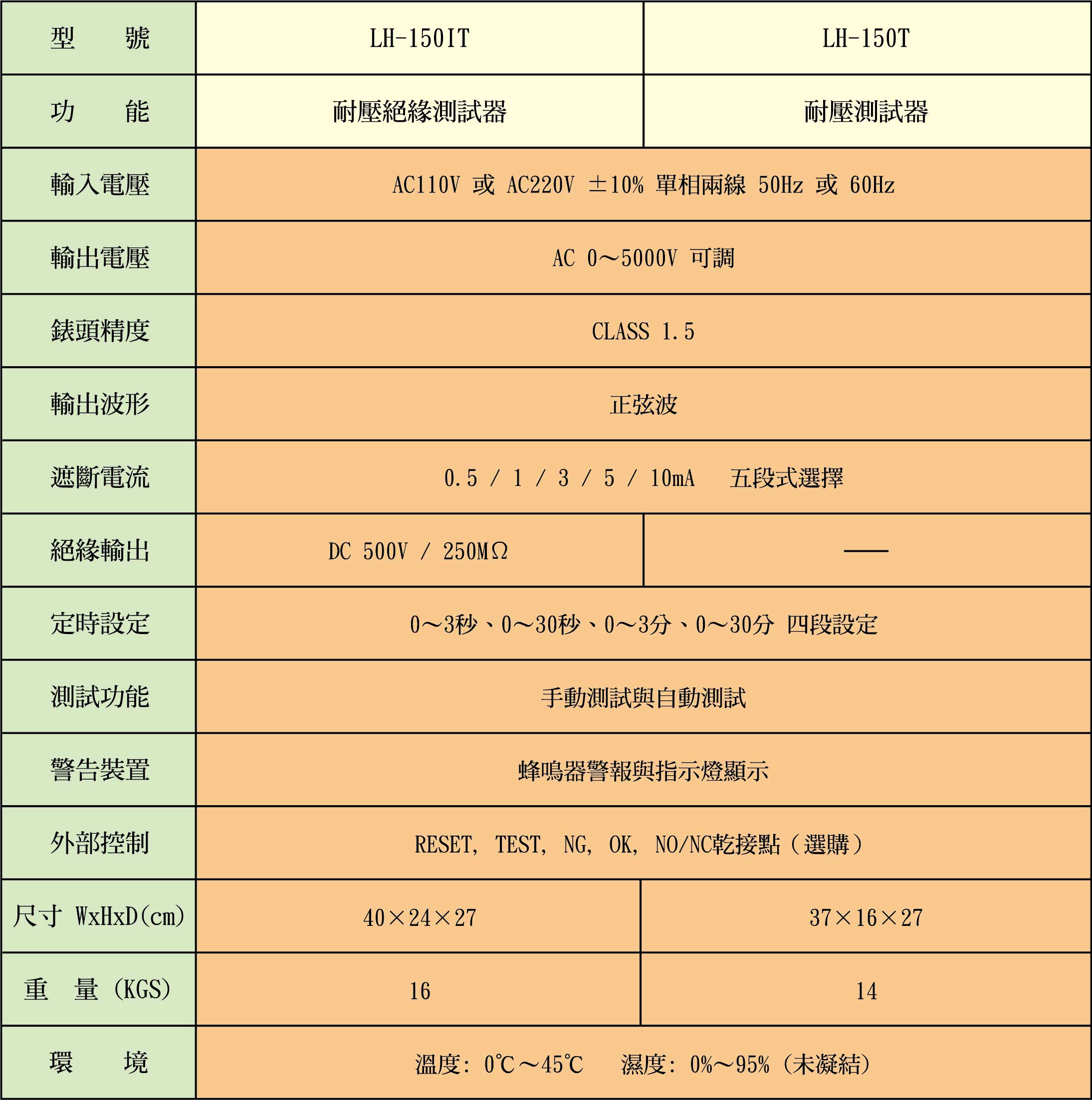

泰利電器TAILI-產品型錄-耐壓/絕緣測試器(TL-LH)泰利電器TAILI-Catalog-Puncture/Insulation Tester(TL-LH)規格總表 Specifications
| 型號 Type |
TL-LH-150T | TL-LH-150IT |
 |
 |
|
| 容量 Capacity | 500KVA | |
| 輸入電壓 Input Voltage | AC110V or AC220V ±10% 1Ø2W 50Hz or 60Hz |
|
| 輸出電壓波型 Output Voltage Waveform | AC | |
| 測試電壓調整範圍 Test Voltage Range | 0~5KV 可調 Adjustable | |
| 電壓表 Voltmeter | 5KV滿刻度，精度等級: 1.5 With full-scale reading of 5 kV with a precision grade of 1.5. |
|
| 絕緣表 Insulation Meter | - | 250mΩ 500VDC |
| 遮斷電流 Cut-Off Current (mA) | 0.5/1/3/5/10, total: 5 steps | |
| 測試模式 Test Function | 手動 Manual 自動 Auto |
|
| 定時功能 Timer | 0~3mins | |
| 警告裝置 Warning Device | 蜂鳴器警報聲響 Indicator 指示燈警告顯示 Buzzer |
|
| 外部控制 External Control | Reset, test, NG, OK, NO/NC 乾接點 dry contact (選配 optional) | |
| 適用環境 Environment | 環境溫度 Temperature：0℃ ~ 45℃ 環境濕度 Humidity：0% ~ 95% RH (非凝結 non-condensing) |
|
| 尺寸 Dimensions (mm) | W374×D265×H160 mm | W394×D265×H235 mm |
| 重量 Weight (kg) | 14 | 17 |
產品特點 Features

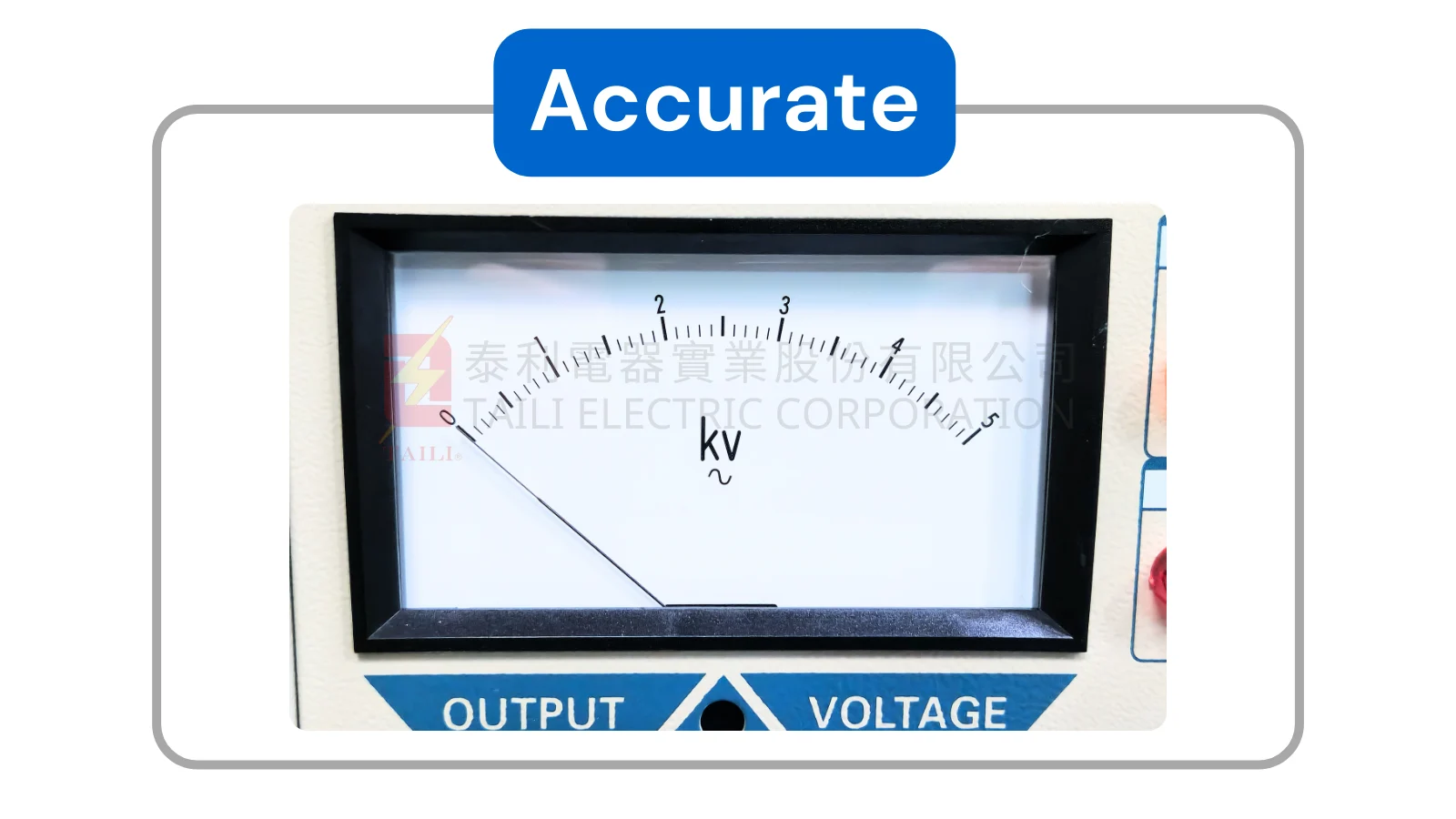

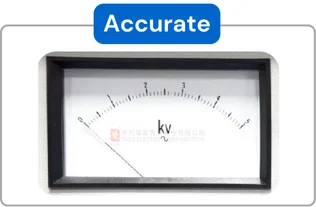

高精度之廣角型電表
High-Precision& Wide-Angle Meters
整合廣角型的KV（千伏）和MΩ（兆歐）電表，採用高精度感測技術，提供卓越的測量準確度，並在各種照明或角度條件下確保數據易讀性，方便工程師精準監控測試過程。
Incorporates wide-angle KV and MΩ meters designed for superior accuracy and easy readability in various testing environments.

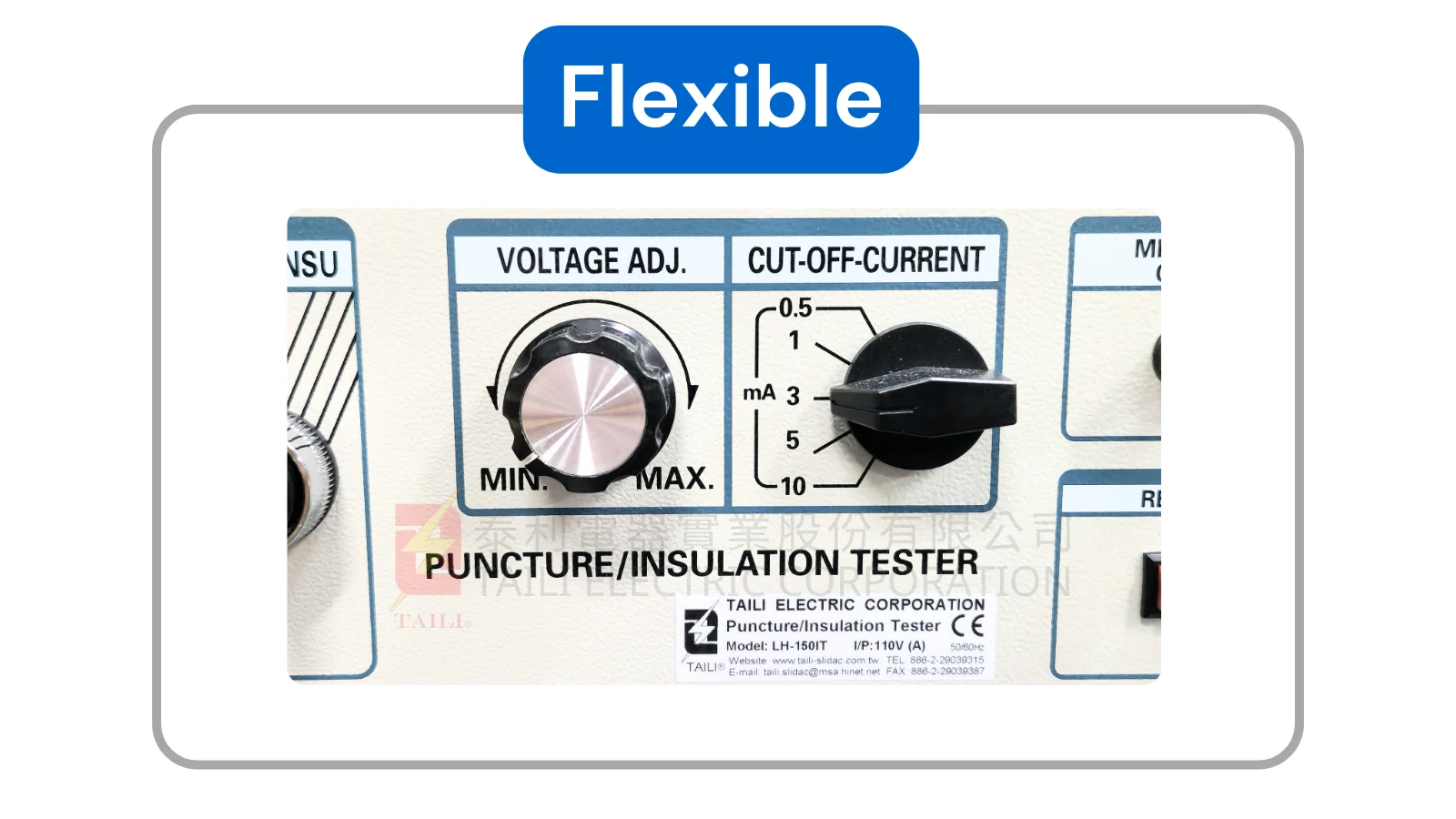

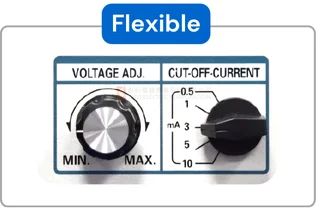

配備多段之遮斷電流調整
Multi-Stage Current Cut-Off
配備多段之遮斷電流調整功能，可根據不同測試需求靈活調整遮斷電流值，實現安全且客製化的測試模式，同時有效避免過電流風險，適用於多樣化的工業應用場景。
Offers precise, multi-level current cut-off settings for flexible and safe testing tailored to specific requirements.

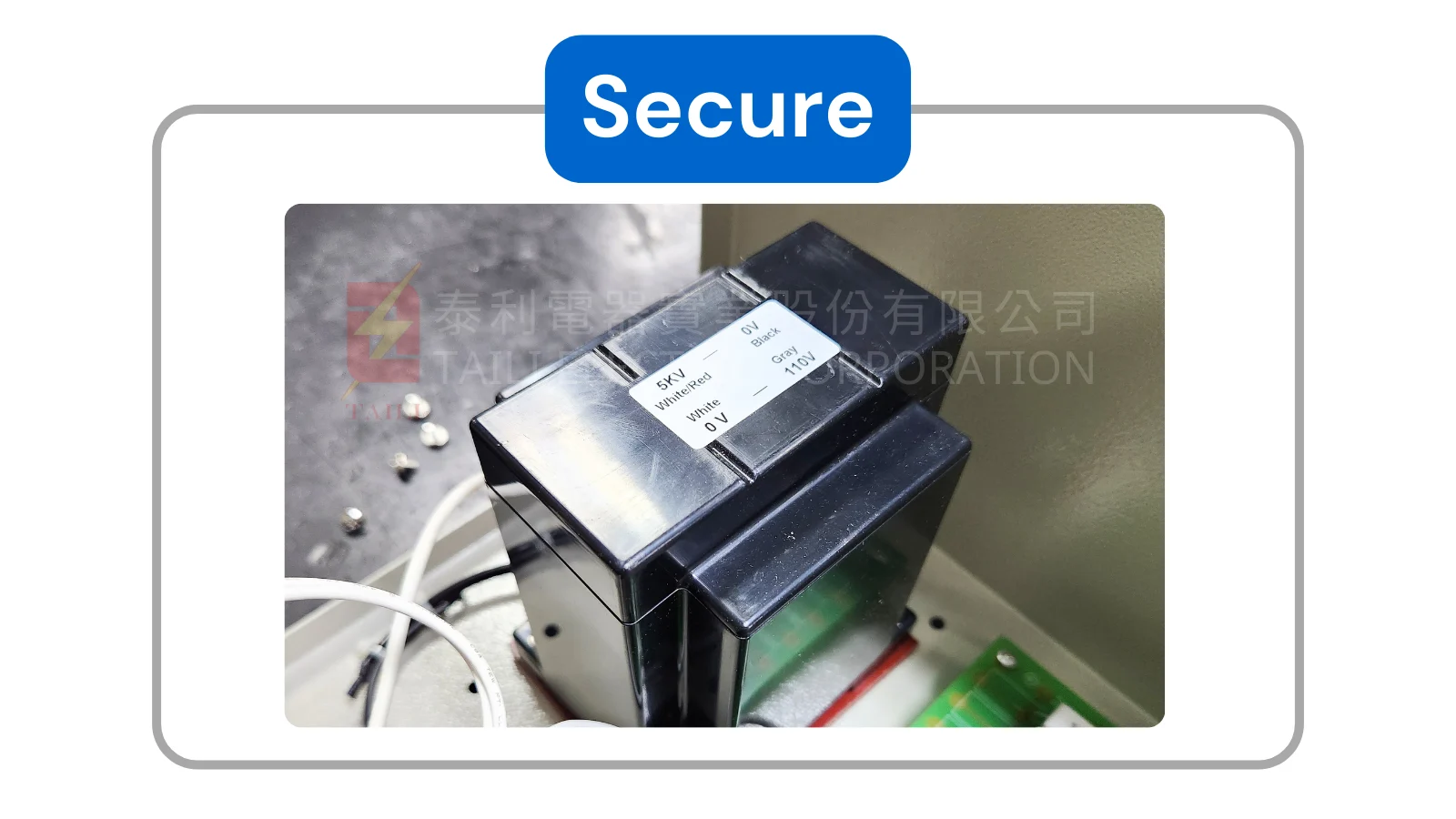

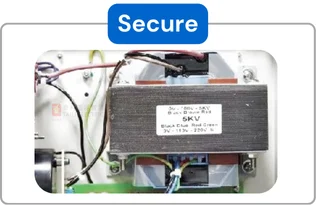

高電壓變壓器保護裝置
Advanced Transformer Protection
內建多重先進保護機制的高壓變壓器，包括過載防護、短路保護及熱穩定設計，確保設備在高負荷或苛刻測試條件下維持高度安全性和長期可靠性，防止潛在故障並延長使用壽命。
Equipped with multiple protective mechanisms in the high-voltage transformer to ensure safety and reliability under demanding conditions.

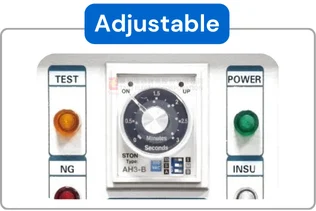

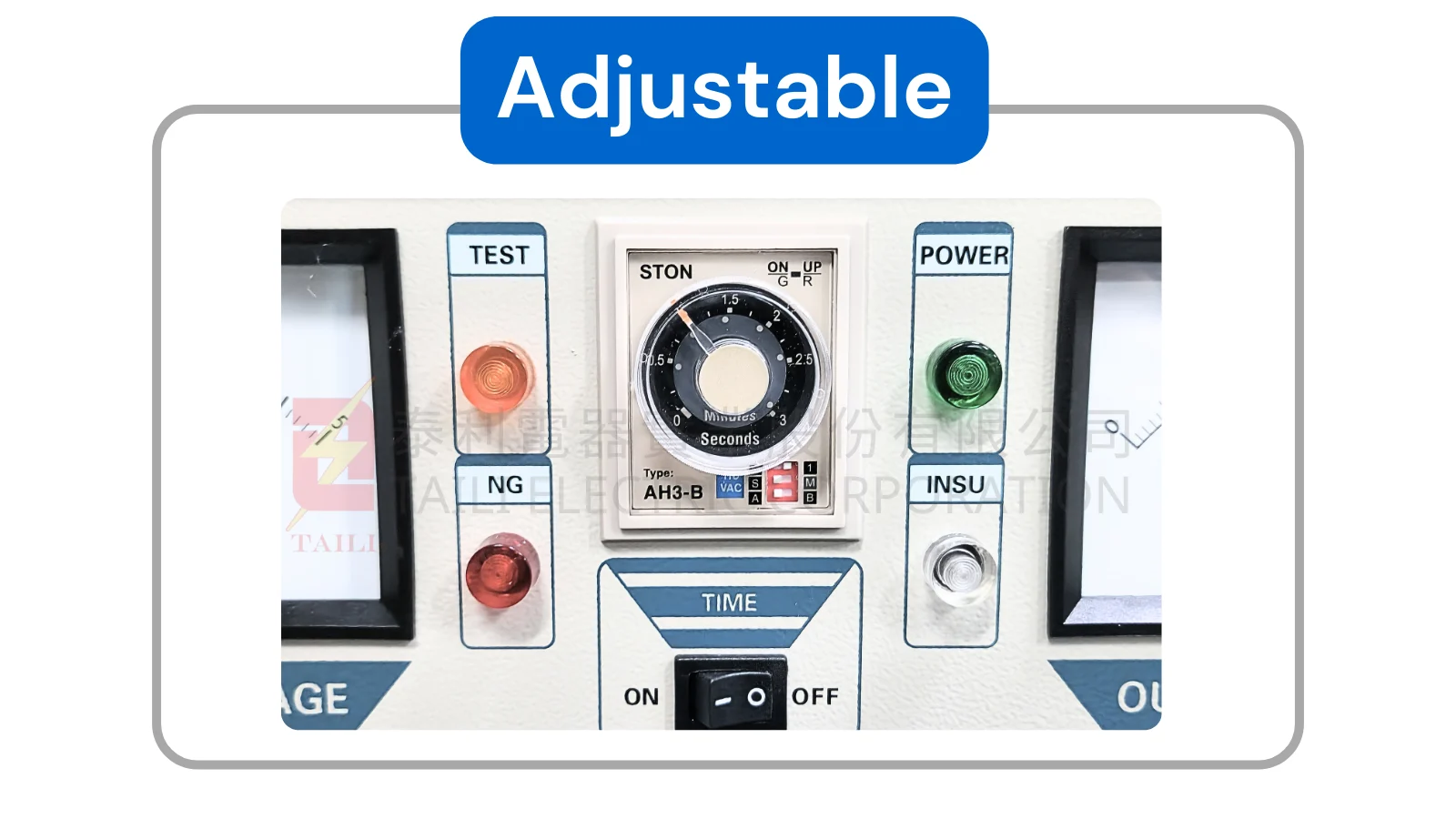

配置精密定時調整功能
Precision Timer Configuration
允許以分鐘和秒為單位0~3分鐘進行精確定時設定，透過先進的電子計時系統確保測試時長的準確控制，支持客製化調整以符合特定協議或標準需求，提升測試效率與重現性。
Allows precise timing adjustments in minutes and seconds for accurate and customizable test durations.
適用範圍 Applications
家用電器 Household Appliances
變壓器 Transformers
印刷電路板 Printed Circuit Boards (PCBs)
電動馬達 Electric Motors
電纜測試 Cables Testing
開關設備 Switchgear
醫療設備 Medical Equipment
工業控制系統 Industrial Control Systems
高壓電纜 High-Voltage Cables
電容器 Capacitors
電源供應器 Power Supplies
燈具與照明設備 Lighting Fixtures
消費電子產品 Consumer Electronics
軍事電氣設備 Military Electrical Equipment
電機繞組 Motor Windings
配電盤 Distribution Panels
數據中心設備 Data Center Equipment
汽車電子 Automotive Electronics
航空航太設備 Aerospace Equipment
通訊設備 Communication Equipment
