感應式電壓調整器（IVR）通常搭配自動穩壓功能使用，因此又稱為感應電子式穩壓器、感應式自動穩壓器或誘導式自動穩壓器（AVR / AIVR）。泰利電器（TAILI）所推出的TL-IVR採用符合JIS C2320與IEC60296等國際標準之高品質絕緣油，確保產品運行穩定、安全可靠。其油入自冷式型號容量範圍涵蓋單相 3 KVA 至三相 30000 KVA，輸入電壓 110～12000V；乾式風冷式則提供 10～500 KVA 容量，輸入電壓範圍 110～6600V，穩定輸入電壓範圍從 ±15% 至 ±50% 皆可依客戶需求訂製。多年來，泰利電器致力於提供高品質的調壓測試與穩壓設備，服務遍及全球各產業，包括海外大使館、公營電力單位、大型製造業及化工產業廠房，深受客戶信賴與肯定。

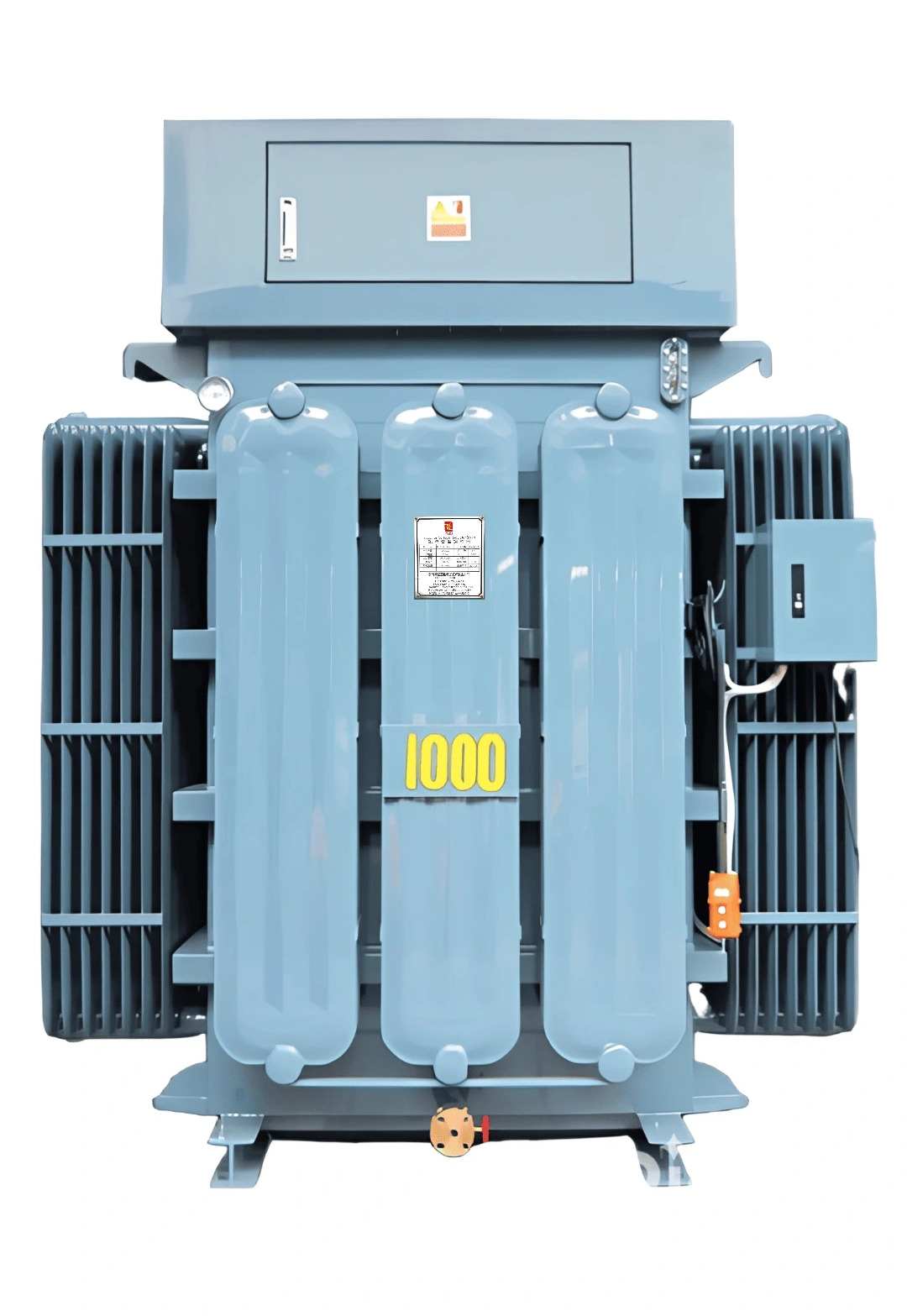

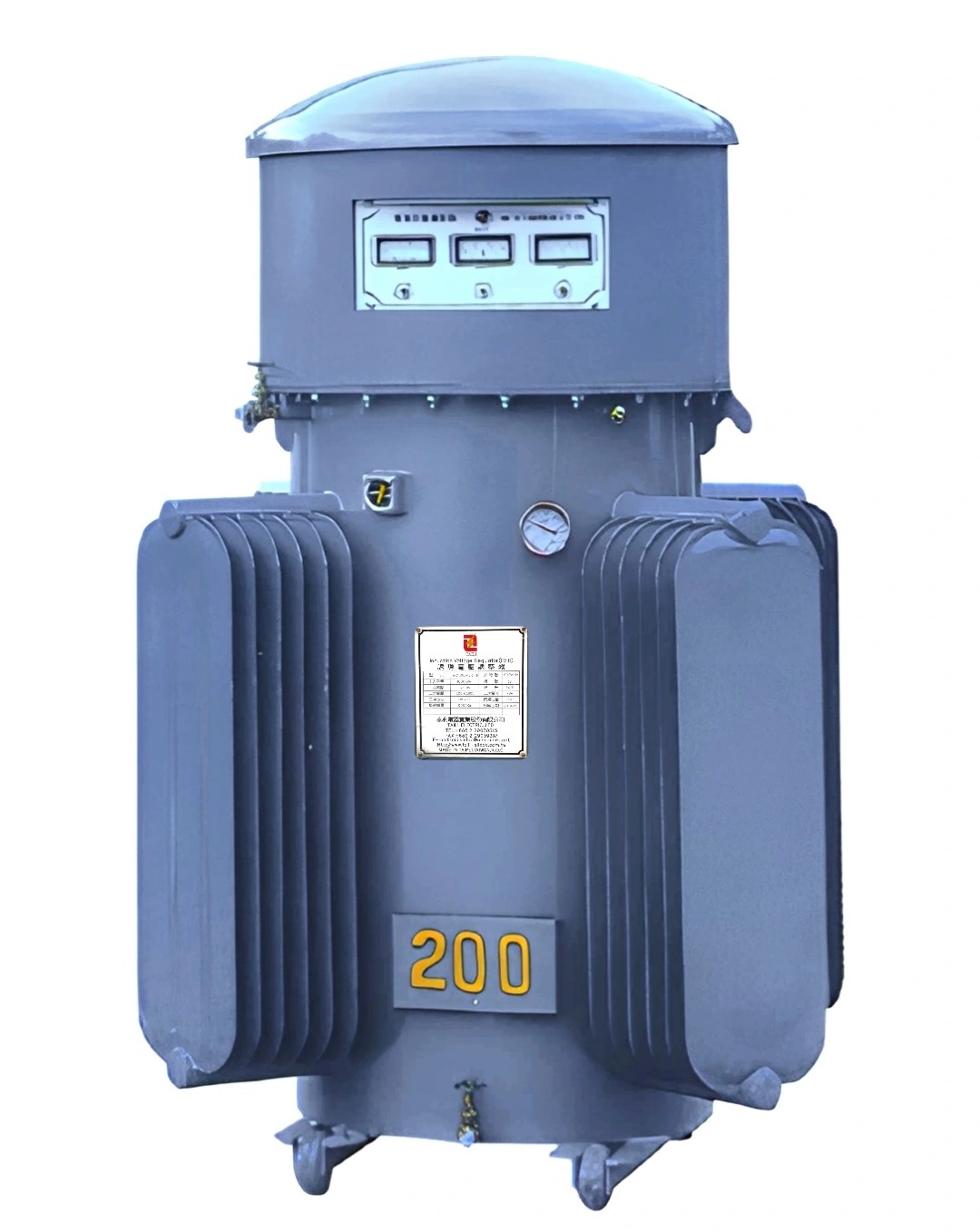

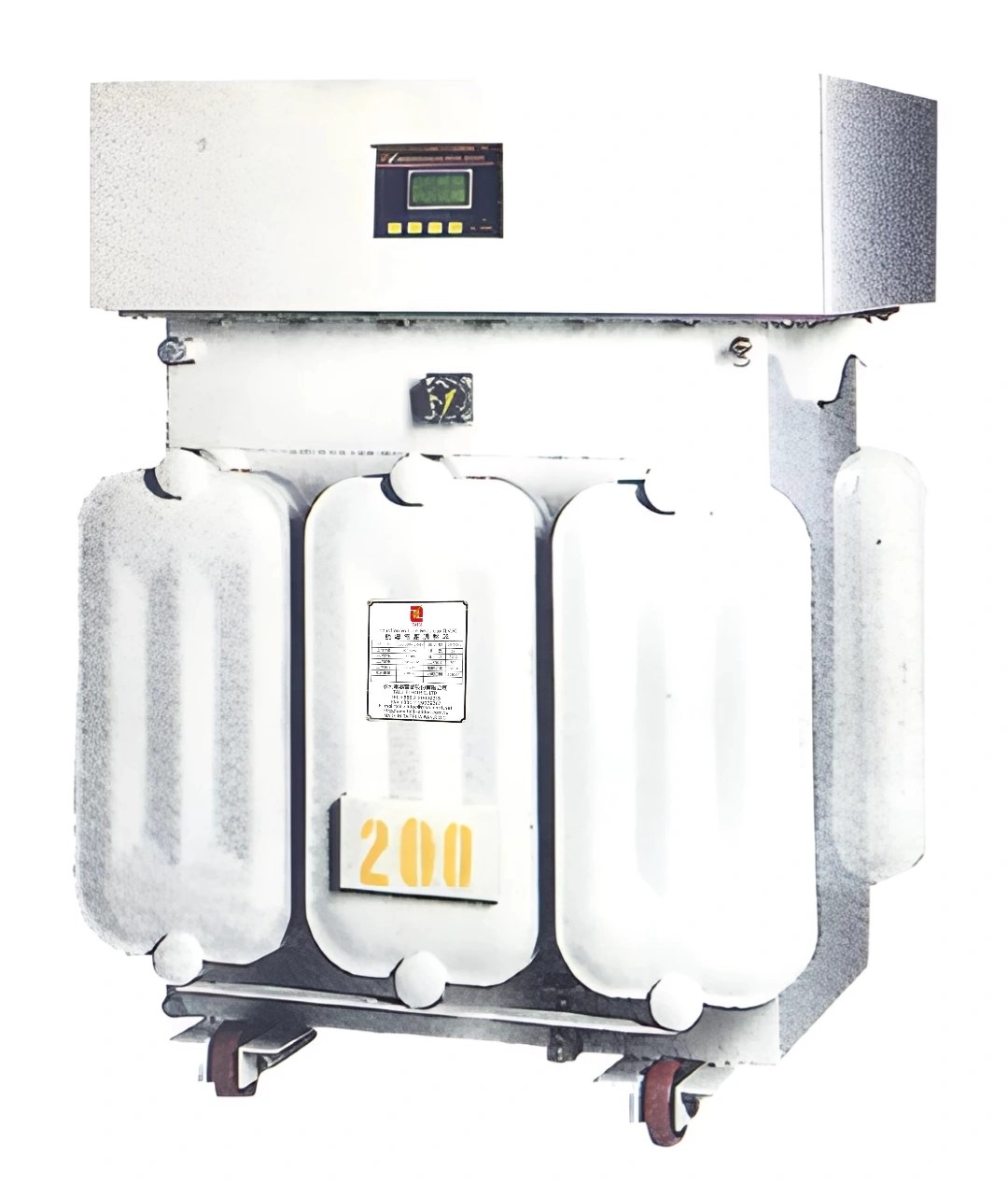

The Induction Voltage Regulator (IVR) is typically equipped with an automatic voltage regulation function, and is therefore also known as an Induction Electronic Voltage Regulator, Induction Automatic Voltage Regulator, or Automatic Induction Voltage Regulator (AVR / AIVR). The TL-IVR series manufactured by TAILI ELECTRIC CORPORATION adopts high-quality insulating oil that complies with international standards such as JIS C2320 and IEC 60296, ensuring stable performance and operational reliability. The oil-immersed cooling type is available in capacities ranging from single-phase 3 KVA to three-phase 30,000 KVA, with input voltages from 110 to 12,000 V. The air-forced cooling types are offered from 10 to 500 KVA, with input voltages from 110 to 6,600 V. The range of stabilizing input voltage can be customized from ±15% to ±50%, according to customer requirements. With decades of experience, TAILI ELECTRIC CORPORATION has been committed to providing high-quality voltage regulating and testing equipment to industries worldwide. Our clients include foreign embassies, public power utilities, large-scale manufacturing facilities, and chemical industry plants, earning us long-term trust and recognition across global markets.
泰利電器TAILI-產品型錄-感應電子式穩壓器(TL-IVR)
泰利電器TAILI-Catalog-Induction Voltage Regulator(TL-IVR)
( 特殊規格皆可訂製 Special specifications can be customized )
下列內容為感應式電壓調整器IVR搭配穩壓功能之產品規格
The following outlines the product specifications of an Induction Voltage Regulator (IVR) integrated with voltage stabilization functions.
| 相數 Phase(Φ) | Single phase(1Φ) Three phase(3Φ) |
| 頻率 Frequency(Hz) | 40~60Hz |
| 輸入電壓 I/P(V) | 110~12000V |
| 穩定輸入電壓範圍 The range of stabilizing I/P voltage | ±15~50% |
| 輸出電壓可調範圍 The adjusted range of O/P voltage | ±2% |
| 輸出精度 O/P accuracy | ±0.8~3% |
| 總諧波失真率 Waveform Distortion | 0 |
| 容量 Capacity(KVA) | 1Φ: 3~1000KVA(1MVA) 3Φ: 5~30000KVA(30MVA) |
| 反應時間 Response time | 0.5~2s (取決於電壓範圍depend on the range of voltage) |
| 效率 Efficiency | >97% |
| 調整方式 Adjustment methods | 手動型: 可使用手輪旋轉以調整所需之電壓 Manual Type: Voltage adjustment is performed by rotating a handwheel. 電動型: 使用工業用遙控器操控以調整所需之電壓 Motorized Type: Voltage adjustment is controlled via an industrial remote controller. 自動型: 監測偏離值以達成自動調整電壓 Automatic Type: Voltage is automatically adjusted by monitoring deviation values. |
| 欠相保護 Phase failure protection | LED警示 (蜂鳴器警報裝置) LED Display (Buzzer warning) |
| 超載保護 Overload protection | |
| 油量不足警示 Oil empty indicator | |
| 過熱保護 Over temperature protection | |
| 噪音規範 Noise level | <40dB |
| 溫度規範 Temperature | -20~+40°C |
| 濕度規範 Humidity | 0- 90% 非凝結non-condensing |
| 絕緣油國際標準認證 International Standard Certification for Insulating Oil | JIS C2320 IEC 60296 |
便利懸吊設計
Convenient Hanging for Easy Mobility
配備便捷的懸吊裝置，可輕鬆移動與重新定位設備。結構堅固耐用，操作直覺流暢，有效提升設備移動效率，同時確保使用安全。
The convenient hanging device allows effortless transport and repositioning of equipment. Designed for intuitive operation, it features a sturdy and durable structure, enhancing mobility efficiency while ensuring safe use.
工業級遠端控制裝置
Industrial-Grade Remote Control Device
採用工業級遠端控制設計，提供高效且精準的遠距操作功能，實現無距離限制的設備控制。其耐用結構與穩定通訊性能，確保工業環境下的安全與可靠運作，提升操作效率並簡化維護流程。
The industrial-grade remote control device delivers efficient and precise remote operation, enabling equipment control without distance limitations. Its durable design and stable communication ensure safe and reliable performance in industrial environments, enhancing operational efficiency and simplifying maintenance.
高效散熱鰭片設計
High-Performance Heat Dissipation Fins
特製的散熱鰭片能強化熱循環效果，迅速導出運行熱能，維持設備穩定運作。結合精密結構與耐用材料，提供可靠的散熱效能，延長系統壽命並提升整體運轉效率。
The heat circulation fins are specially designed to enhance thermal dissipation, rapidly removing heat to maintain stable equipment operation. Combining precise structure with durable materials, they provide reliable cooling performance, extending system lifespan and improving overall efficiency.
精密儀表與人體工學控制設計
Precision Instrumentation and Ergonomic Control Design
整合監測與操作控制區域，提供即時電壓與電流資訊，以精準的使用介面提升操作便利性。依據人體工學設計，確保操作安全、舒適與可靠，進一步提升系統監控與維護效率。
The instrument and operation control area integrates monitoring and control components, providing real-time voltage and current information with a precise user interface. Designed based on ergonomic principles, it ensures operational convenience, safety, and reliability while enhancing system monitoring and maintenance efficiency.
安全電源開關與配線空間
Safe Power Switches and Wiring Spaces
採用高標準絕緣設計的電源開關與配線空間，確保電氣隔離及整齊佈線。內建防護結構有效提升操作安全性與維護便利性，確保穩定可靠的電氣運作。
Safe power switches and wiring spaces ensure proper electrical isolation and organized wiring layout. They adopt rigorous insulation designs and protective devices to guarantee operational safety and maintenance convenience.
精準監控，全方位掌握
Accurate Monitoring for Complete Insight
油位計與溫度計可即時顯示重要運行資訊，清晰呈現設備狀態。採用高精度設計與耐用材質，確保監控穩定可靠，保障電氣系統安全高效運作。
The oil level gauge and thermometer provide real-time display of critical information, giving clear visibility of equipment status. Featuring high-accuracy design and durable materials, they deliver stable and reliable monitoring performance, ensuring safe and efficient electrical operation.
生產製造產線
Production and Manufacturing Lines
UPS 不斷電供電系統
UPS Uninterruptible Power Supply Systems
電信傳播產業
Telecommunication and Broadcasting Industry
塑膠射出成型設備
Plastic Injection Molding Equipment
工具機
Machine Tools
電梯系統
Elevator Systems
馬達測試
Motor Testing
建築施工與結構工程
Building Construction and Structural Engineering
機電整合系統
Mechatronic Integration Systems
電熱設備
Electric Heating Equipment
醫療用設備與儀器裝置
Medical Equipment and Instruments
設備與儀器負載性能測試
Equipment and Instrument Load Performance Testing
冷凍空調設備
Refrigeration and Air Conditioning Equipment
CNC 電腦數位控制設備
CNC Computer Numerical Control Equipment
