轉矩馬達
Torque Motor

TL-TM

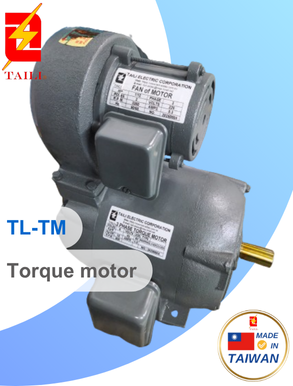

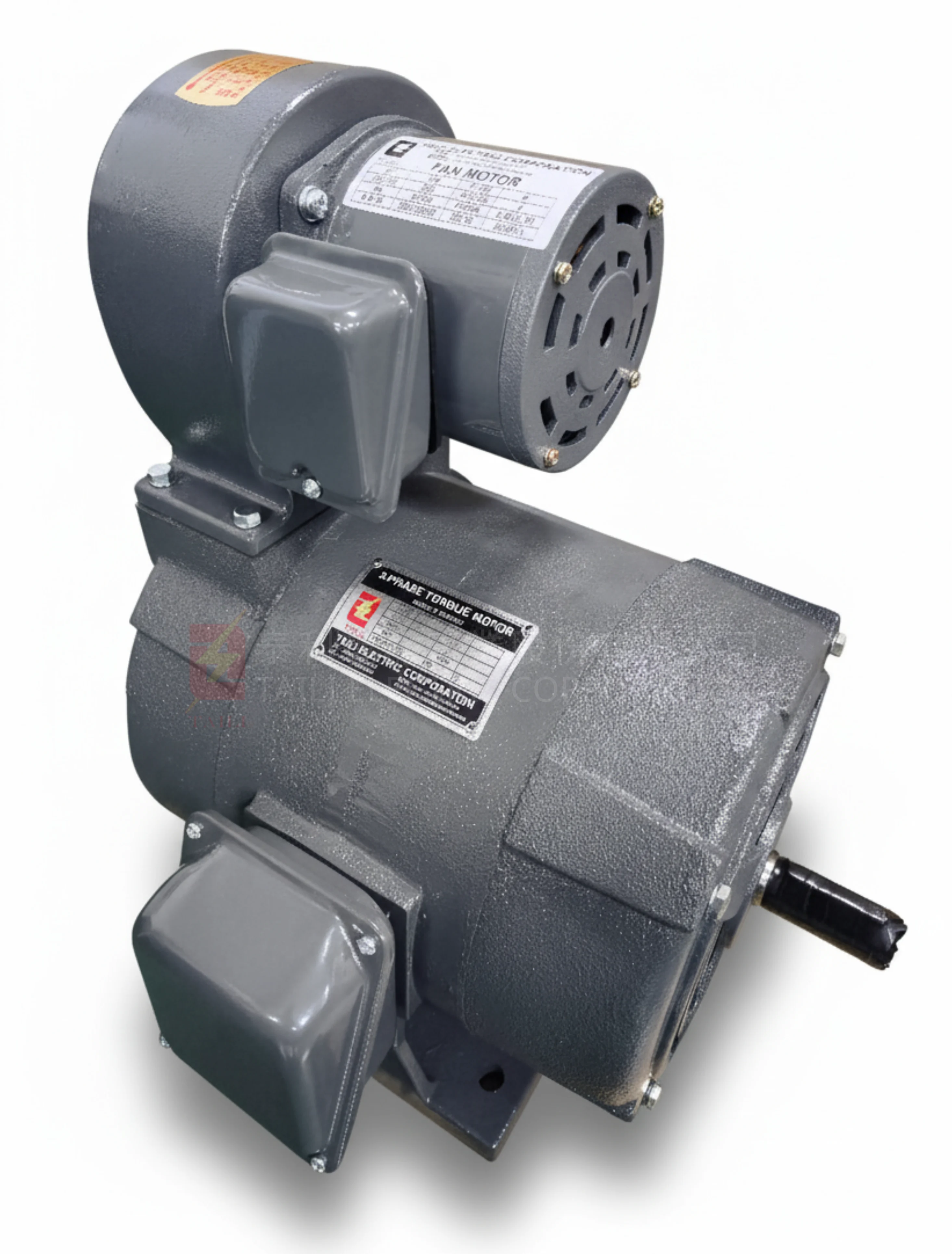

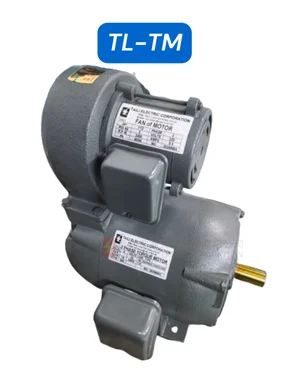

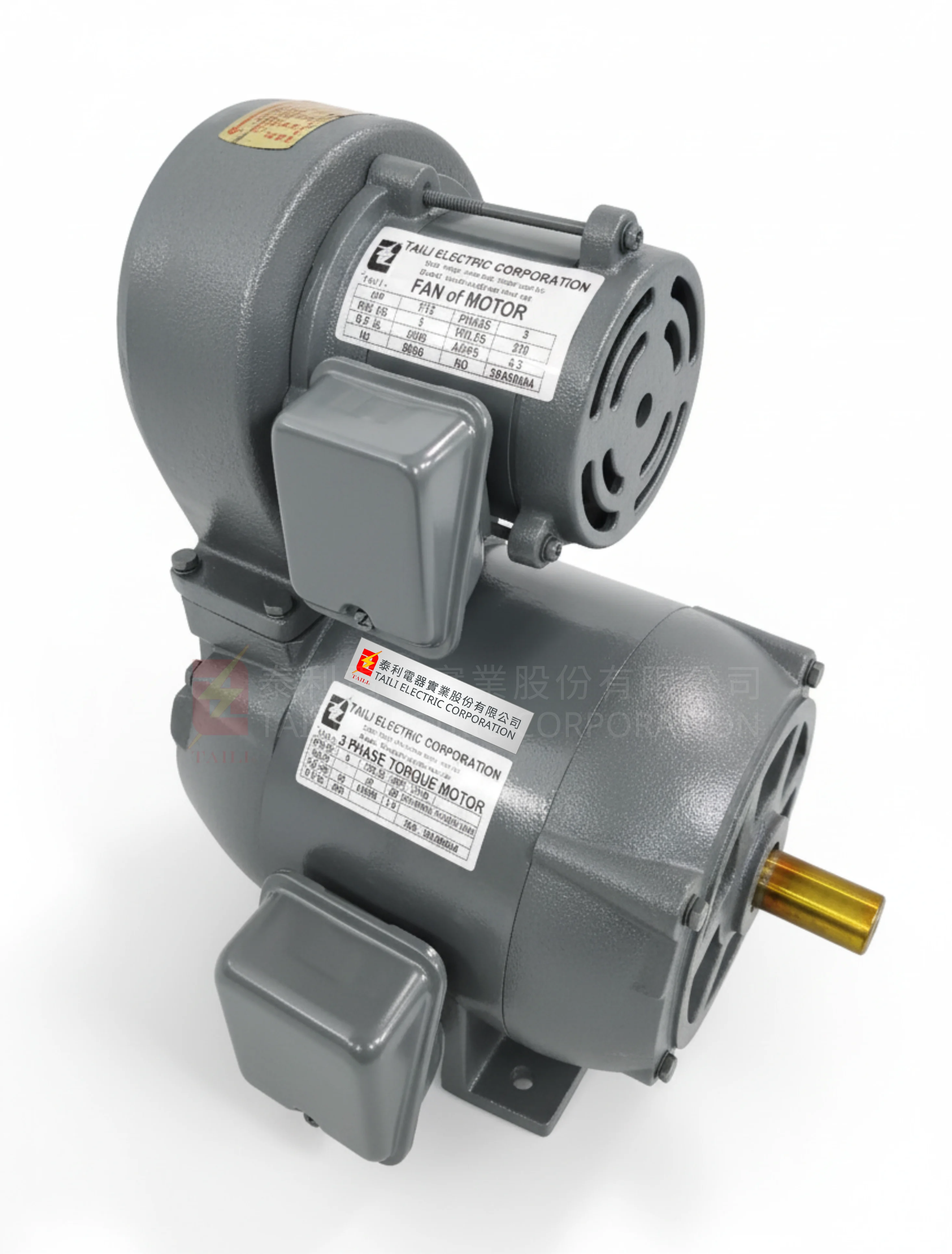

轉矩馬達 Torque Motor



泰利電器的轉矩馬達(TL-TM)設計不同於一般馬達,轉矩馬達具有較大的啟動迴轉扭力,在低轉速及承受拘束負載時,能得到穩定的轉矩及運轉。當負載增加時,馬達的迴轉扭力與電壓成平方比,當負載轉矩為一定值時,變更供給電壓即可改變迴轉速度。 轉矩馬達的特性使其適用於以一定的張力,持續捲取. 捲繞一定速度的物品。當捲取輪軸外徑變大時,具保持拘束狀態用。轉矩馬達被廣泛應用於在需要將產品捲繞在捲筒上的作業,例如: 紡織. 造紙. 橡膠. 塑膠(圓絲. 扁絲. 塑膠袋. 保鮮膜). 金屬線材和電線電纜以及印刷機械等工業領域。
Torque motors(TL-TM) are designed to provide high starting stability, especially in low-speed ranges or under locked rotor conditions. The torque is at its peak at zero speed and gradually decreases as speed increases, maintaining a balanced motor and load performance. Motor rotation speed can be adjusted by varying the supply voltage when the loading torque remains constant. These motors are ideal for continuous winding and unwinding of materials at a consistent speed with controlled tension. They are particularly suited for applications requiring forced static torque during or after operation. Torque motors, crafted by TAILI, are widely utilized in industries where materials need to be wound onto reels, including textiles, paper, rubber, plastic (round wire, flat wire, plastic bags, cling film), metal wire, cable, and printing machinery.


產品型錄 Catalog

特殊規格皆可訂製 Special specifications can be customized



泰利電器TAILI-產品型錄-轉矩馬達(TL-TM)

泰利電器TAILI-Catalog-Torque Motor(TL-TM)

所需參數 Required Parameters

選用轉矩馬達所需資料
Data Required for Selecting Torque Motor

最大捲取張力及電壓、頻率
Maximum winding tension, voltage, and frequency.

所需最高與最低轉速
Operating speed range (maximum and minimum).

最小及最大捲徑(註:最小捲徑為起捲直徑,最大捲徑為捲完直徑)
Minimum winding diameter and maximum finished roll diameter (Note: Minimum winding diameter is the starting diameter, maximum is the finished diameter).

選定減速機型號及減速比
Available retarding motor models and gear ratios.


設計原則與補充說明
Design Principles and Supplementary Notes

原則上採用 4 極馬達為最經濟方案
In principle, 4-pole motors are the most economical choice.

換算公式:1 kg-m = 100 kg-cm;1 HP 4P 一般馬達 1700 rpm 時轉矩為 0.427 kg-m。
Conversion: 1 kg·m = 100 kg·cm. Approximation: 1 HP 4-pole motor ≈ 0.427 kg·m at 1700 rpm.

輸出範圍可依機械需求承製 0.01~3.0 kg·m,並可製作 2P、4P、6P、8P、12P 或其他不同轉速規格
Output range: 0.01 to 3.0 kg·m, available in various models including 2-pole, 4-pole, 6-pole, 8-pole, 12-pole, or other different speed specifications (customizable based on mechanical requirements).


極數
Pole
同步轉速
Sycn Speed (rpm)
 實際使用轉速範圍
Actual Operating Speed Range (rpm)
50Hz 60Hz 50Hz 60Hz
2 3000 3600 0~2000 0~2400
4 1500 1800 0~1000 0~1200
6 1000 1200 0~670 0~800
8 750 900 0~500 0~600
12 500 600 0~330 0~400


產品特點 Features

設計精良,結構簡單,堅固耐用
Well-designed, simple structure, durable and reliable

整體設計兼具實用性與耐用性,機構簡潔,維修保養方便,使用壽命長。
The design combines practicality with durability, featuring a simple structure that is easy to maintain and ensures long service life.


啟動性能優異,運轉穩定可靠
Excellent starting performance, stable and reliable operation

具備啟動電流小、啟動扭矩大的特性,可長時間穩定運轉,適用於連續性生產設備。
Low starting current and high starting torque enable long-term stable operation, suitable for continuous production equipment.


散熱效果佳,確保高負載下安全運作
Good heat dissipation, safe operation under high load

馬達散熱良好,即使在高負載下轉差率增加,也不會燒毀,並能持續提供穩定張力輸出,使布、帶、絲、線、膜等在捲繞時保持最佳張力,避免皺摺與斷料。
The motor dissipates heat efficiently, preventing burnout even under high load slip conditions, and provides stable tension output, keeping fabrics, belts, threads, wires, and films properly tensioned during winding to avoid wrinkles and breakage.


可靈活搭配控制與傳動裝置
Flexible compatibility with controllers and transmission devices

可搭配各類控制器(如自耦式調壓器、電壓調整器、變頻器等)使用,具廣泛調整範圍,亦可配合減速機達成最佳傳動效果。
Compatible with various controllers (such as Variable transformers, voltage regulators, inverters) for wider adjustment range, and can be combined with gear reducers for optimal transmission performance.


適用範圍 Applications

捲繞與引取作業(中心捲取、表面捲取)
Winding and Take-up Operations (Center Winding, Surface Winding)
適用機械
Applicable Machinery
抽絲製造機 Yarn Extrusion Machine / Filament Spinning Machine
吹袋機 Blown Film Extruder / Film Blowing Machine
吹膜機 Casting Film Machine / Cast Film Extrusion Line
分條機 Slitting Machine / Slitter Rewinder
淋模機 Laminating Machine / Extrusion Coating Machine
捲收機 Winding Machine / Winder / Coiler
圓織機 Circular Loom
編織機 Weaving Loom / Weaving Machine
...
適用產品
Applicable Products
布料 Fabrics / Textiles
橡膠 Rubber
塑膠袋 Plastic Bags
伸縮膜 Stretch Film
扁絲 Flat Yarn / Slit-film Yarn
圓絲 Monofilament / Round Yarn
紙張 Paper
鋼片 Steel Strips / Coils
銅線 Copper Wire
鐵線 Iron Wire
鋁線 Aluminum Wire
電線 Electric Wire & Cable
...
攪拌作業(固體或液體)
Agitation/Mixing Operations (Solid or Liquid)
適用機械
Applicable Machinery
粉碎機 Pulverizer / Grinding Machine
造紙機 Paper Machine
攪拌機 Agitator / Mixer
...
布料或塑膠印染展張作業
Fabric or Plastic Printing and Dyeing Spreading/Tensioning Operations
適用機械
Applicable Machinery
退漿機 Desizing Machine
印刷機 Printing Machine
...
負載控制、輔助啟動、煞車及收放料作業
Load Control, Start-up Assistance, Braking, and Payout/Take-up Operations
適用機械
Applicable Machinery
電纜收放機 Cable Payout and Take-up Machine / Cable Haul-off & Pay-off Machine
檢布機 Fabric Inspection Machine
...
