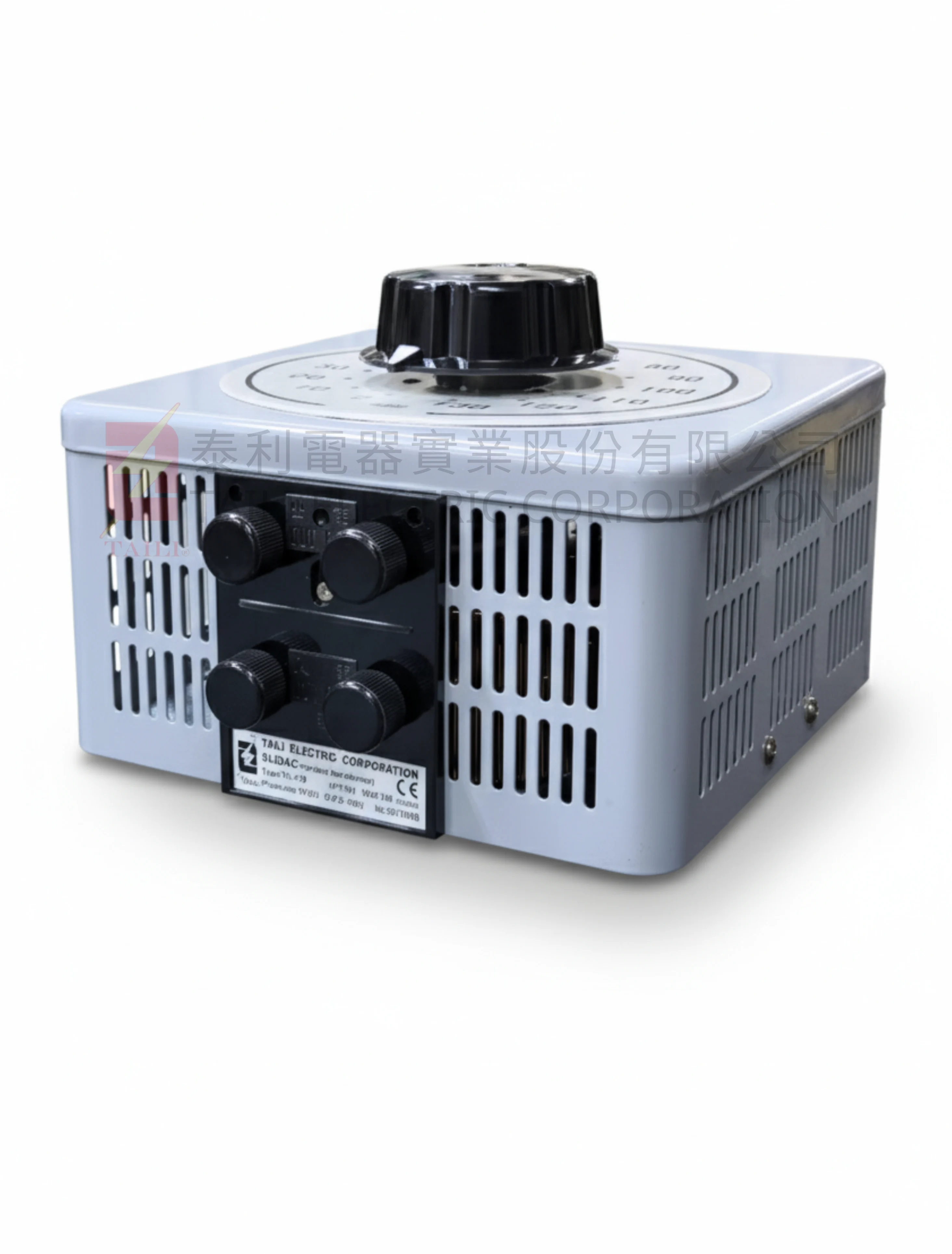

泰利電器TAILI研發之 TL-SLIDAC 自耦式電壓調整器堅持全產線及使用原料100%台灣製造，除了具備歐盟 CE 認證標準亦符合歐洲標準（EN）和國際電工委員會（IEC） EN/IEC 61558-1、EN/IEC 61558-2-13國際標準規範，所採用線材符合UL E84081、UL E84201、JIS 3202、NEMA MW、IEC 60317 等國際規範，絕緣耐熱等級均達到 F 級（155°C）及 H 級（180°C）之線材，能安全承受多種過載情況，全製程皆經嚴格品質管制，確保產品穩定與安全。除一般單相100V、110V、120V及三相380V、400V、415V、440V、480V一般電壓，容量從單相0.3KVA到約三相1700KVA(1700KVA以上亦可製作)，電流從2A到2000A之外，並可依需求製作更大容量或特殊規格產品。提供手動型、電動型(M)、全配備測試型(A)選擇，泰利電器TAILI的機構設計除了一般基本設計外，亦獨自研究開發設計適合大容量專用的L型(L)結構(e.g. TL-250L, TL-34500L, etc..)，相較於相同容量的規格，體積更小、重量更輕、散熱提升、效率更好。TL-SLIDAC 自耦式電壓調整器廣泛應用於實驗室測試、電源負載測試、溫升測試、高低壓配電盤負載測試及固態變壓器測試等領域，三十年來，泰利電器TAILI持續為國內外各大知名企業提供高品質電壓調整測試設備，以滿足多元應用需求。
The TL-SLIDAC variable transformer developed by TAILI is manufactured entirely in Taiwan, with 100% locally sourced materials throughout the production line. In addition to meeting the EU CE certification requirements, it also complies with European (EN) and International Electrotechnical Commission (IEC) standards, including EN/IEC 61558-1 and EN/IEC 61558-2-13. The winding materials used conform to international specifications such as UL E84081, UL E84201, JIS 3202, NEMA MW, and IEC 60317, and feature insulation heat-resistance ratings of Class F (155°C) and Class H (180°C), ensuring safe performance under various overload conditions. Every stage of production undergoes strict quality control to guarantee product stability and safety. Standard models are available in single-phase 100V, 110V, and 120V, as well as three-phase 380V, 400V, 415V, 440V, and 480V, with capacities ranging from 0.3 kVA for single-phase units up to approximately 1,700 kVA for three-phase units (with higher capacities available upon request), and current ratings from 2A to 2000A. Customized high-capacity or special-specification models can also be built upon request. Manual, motor-driven (M), and fully equipped test (A) versions are available. In addition to standard structural designs, TAILI has independently developed the L-type (L) heavy-duty structure (e.g. TL-250L, TL-34500L), which offers a more compact size, lighter weight, improved heat dissipation, and higher efficiency compared with products of the same capacity. The TL-SLIDAC variable transformer is widely used for laboratory testing, power load testing, temperature-rise testing, high and low voltage switchgear load testing, and solid-state transformer testing. For over 30 years, TAILI has continued to provide high-quality voltage regulation and testing equipment to leading enterprises domestically and abroad, meeting diverse application needs.
產品型錄 Catalog
泰利電器TAILI-產品型錄-自耦式電壓調整器(TL-SLIDAC)
泰利電器TAILI-Catalog-Variable Transformer(TL-SLIDAC)
技術規範 Technical information
特殊規格皆可訂製 Custom specifications available
|
形式 |

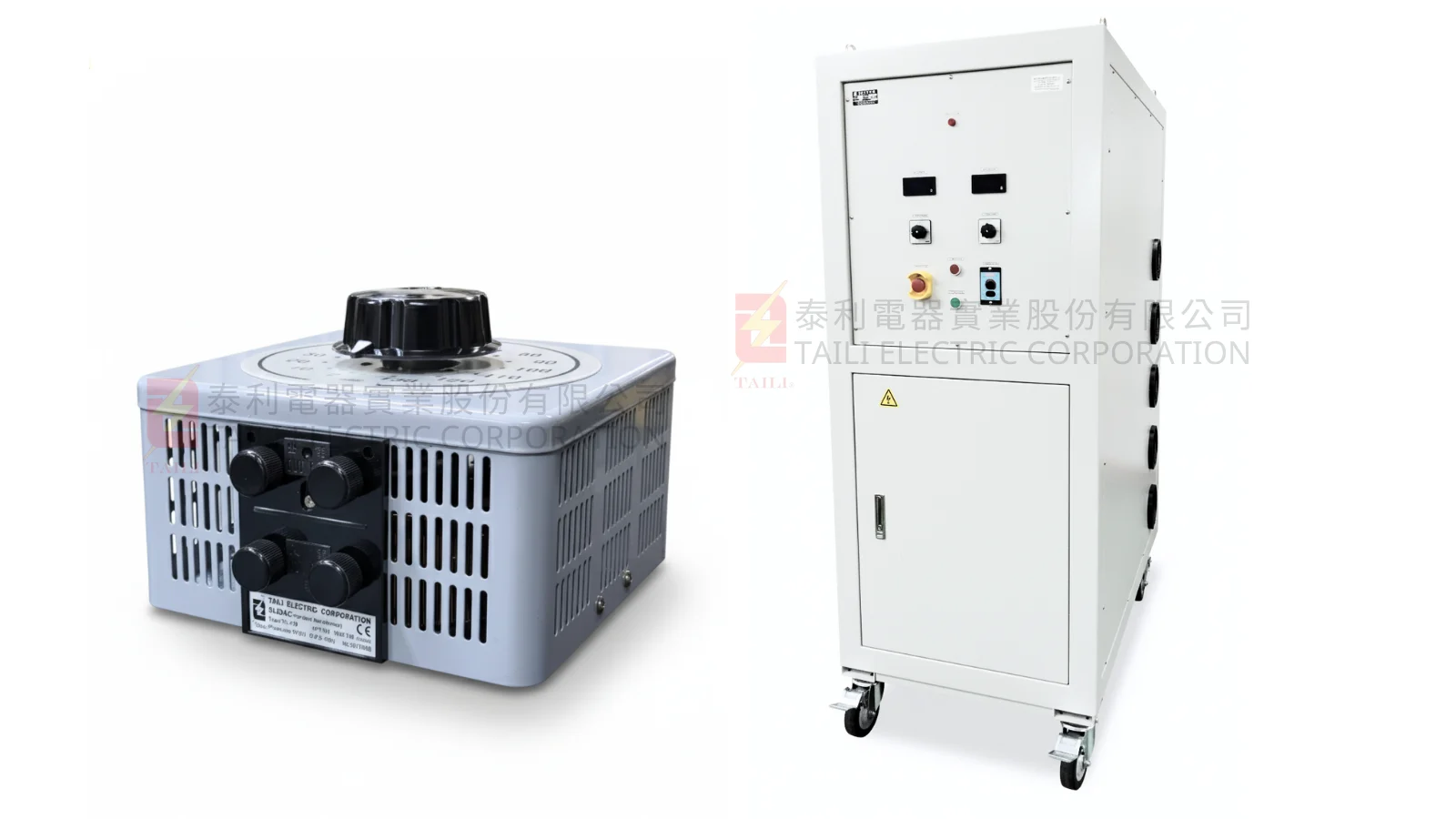

一般型 (如左圖) Fully equipped test sets (A) (Right fig.) |
|
|
|
||
|
調整方式 |
手動型Manual |
電動型Motorized(M) |
| 調壓速度 (由最低至最高壓) Voltage Regulation Speed (from Minimum to Maximum Output) |
- | 固定速度型Fixed Speed Type: 5, 15, 30, 52, 60s (其他速度皆可製作Other speeds available upon request) 外部調速型Adjustable Speed Type |
|
相數 |
單相Single phase(1Φ) |
|
|
頻率 |
50/60Hz |
|
|
輸入電壓 |
單相Single phase(1Φ): |
|
|
輸出電壓調整範圍 |
100%, 117%, 136%, 200% |
|
|
電流 |
2~2000A |
|
|
容量 |
0.3~1700KVA |
|
|
功率因數 |
0.95 |
|
|
總諧波失真率 |
0 |
|
|
效率 |
>98% |
|
|
絕緣等級 |
F（155°C）, H（180°C） |
|
|
噪音規範 |
<40dB |
|
|
溫度規範 |
-20~+50°C |
|
|
濕度規範 |
0- 95% 非凝結Non-condensing |
|
|
過載承受能力 |
1000%(<1s) |
|
| 國際防護等級 International protection marking |
IP20 | |
|
國際認證 |
|
|
|
國際標準規範 |
|
|
|
線材國際標準規範 |
|
|
|
選配項目 |
V: 電壓表Voltmeter |
|

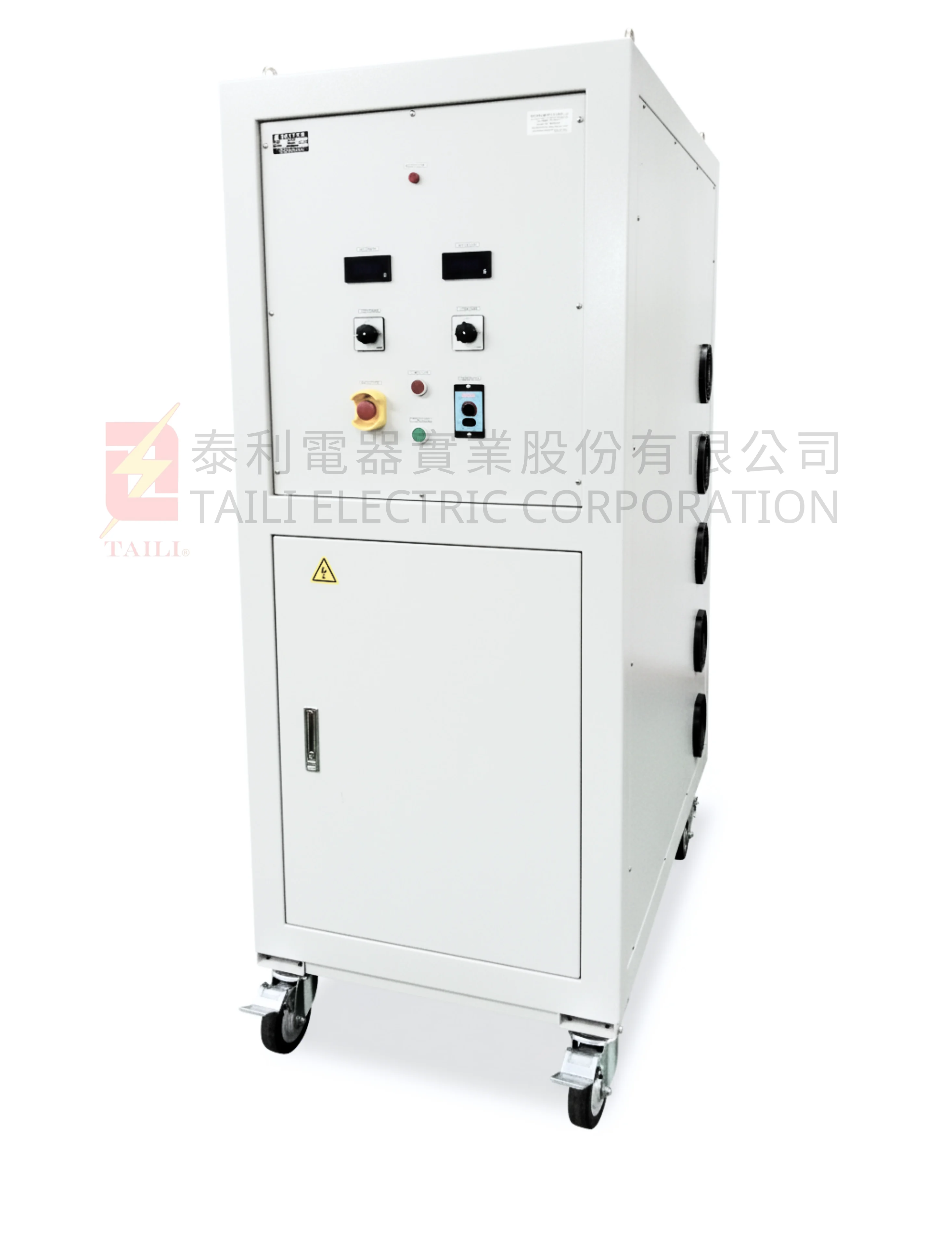

※: 全配備測試型(A)已包含電壓表(V)、電流表(A)、集合式電表(D)(三相適用)、模殼式斷路器(B)、保險絲(F, 非L型)、風扇(F, L型)、活動輪子(W)、指示燈(I)、IP20機箱(e)。
Fully equipped test sets (A) include a Voltmeter (V), Ammeter (A), Digital power Meter (D) (suitable for three-phase use), Molded Case Circuit Breaker, MCCB (B), Fuse (F, Non-L Type), Fan (F, L Type), Casters/Wheels (W), Indicator lights (I), and an IP20 Enclosure (-E).

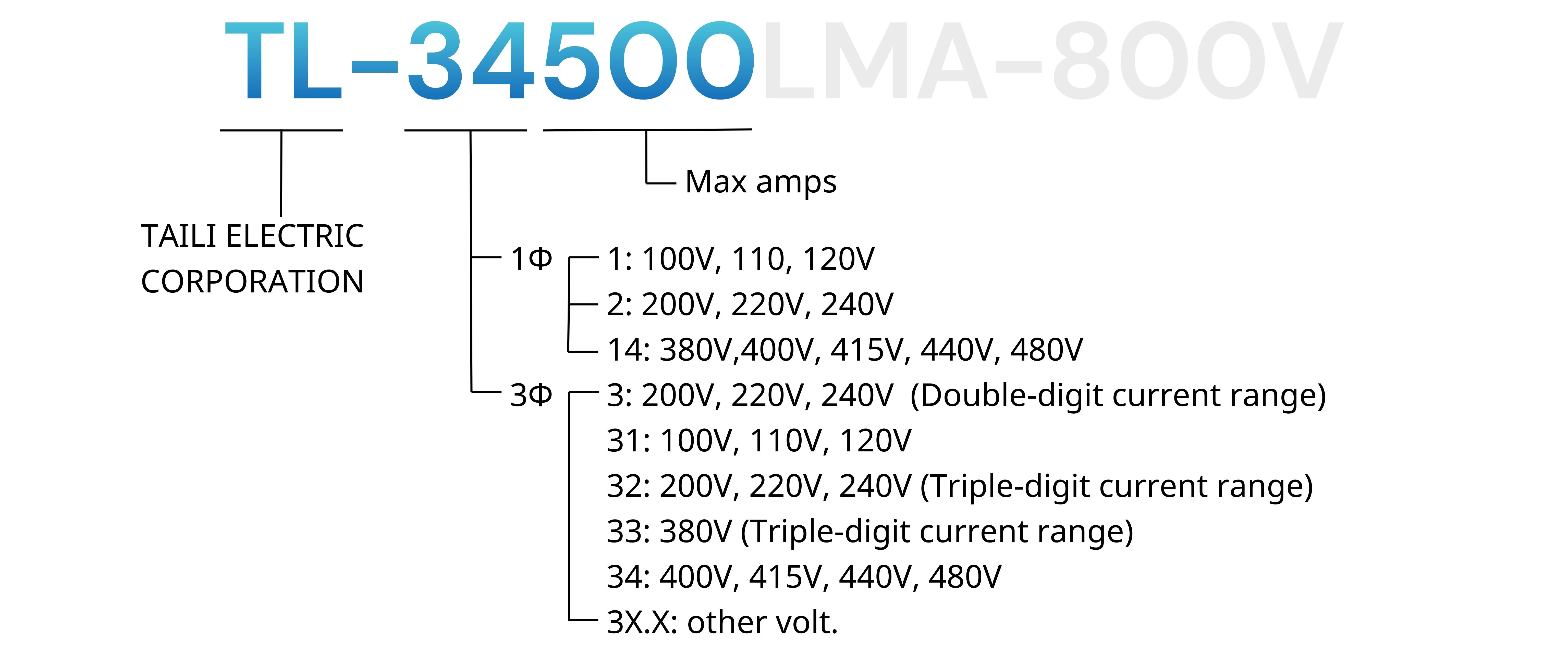

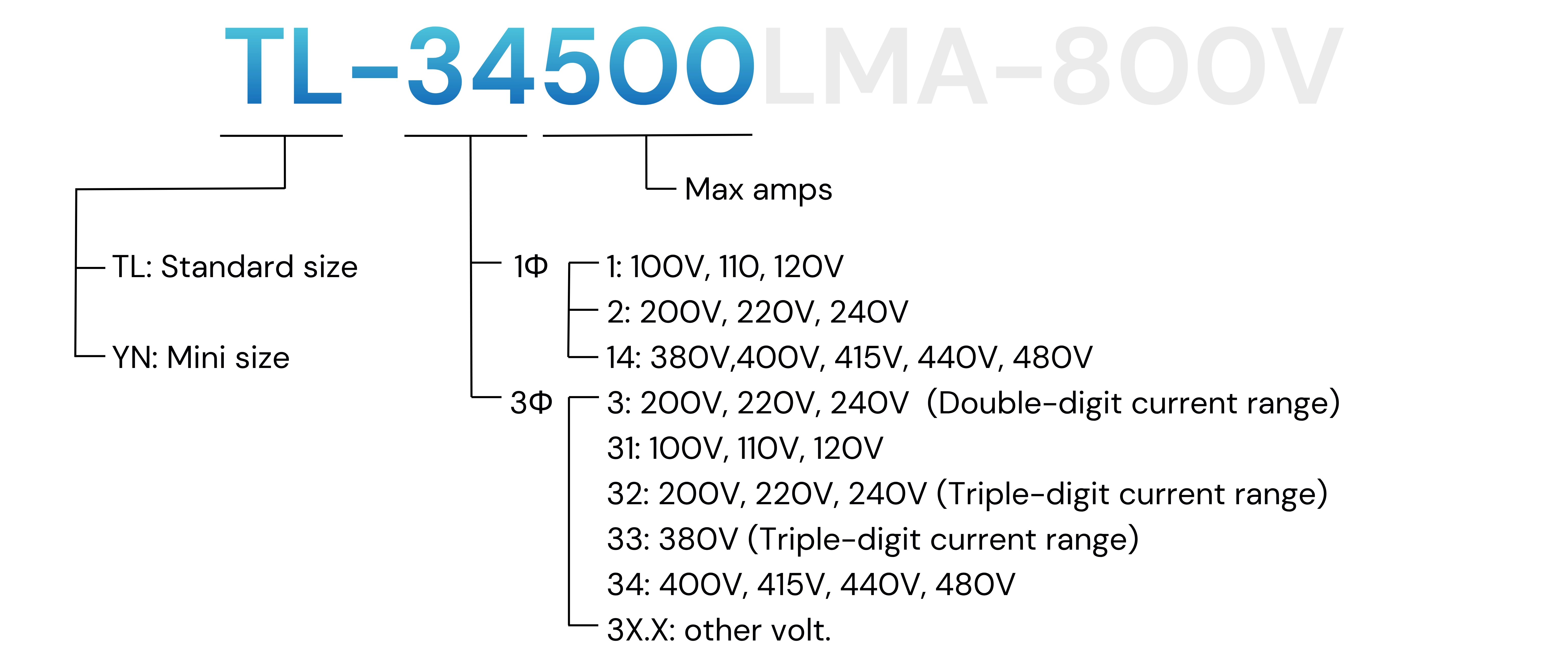

型號命名規則 Type number designations
|
由左至右依序說明 From left to right, described in sequence. |
||
|
公司 |
泰利電器TAILI |
|
|
前1或2個數字 |
單相Single phase(1Φ) |
1: 100V, 110V, 120V |
|
三相Three phase(3Φ) |
3: 200V, 220V, 240V (電流為雙位數Double-digit current range) |
|
|
第3個數字後 |
電流 Max amps |
|
泰利電器TAILI研發之 TL-SLIDAC 自耦式電壓調整器 提供多種不同的設計與配置。這些型號可透過在基本型號後添加以下 後綴（suffix） 或 延伸後綴（suffixes continued） 來加以識別。
TAILI’s TL-SLIDAC variable transformers are available in a variety of designs and configurations. These Types can be identified by adding the following suffixes or suffixes continued to the base type number.
|
後綴 |
V: 電壓表 Voltmeter |
|
後綴延伸 |
-V: 輸出高電壓 High output volt. |
產品特點 Features
1. 高電壓調整範圍 Wide High-Voltage Adjustment Range
無論輸入或輸出高電壓皆可依需求製作，全面滿足各類測試與工業應用需求。
Capable of handling both high input and output voltages, customizable to meet diverse testing and industrial application requirements.
2. 大容量大電流製作 High-Capacity, High-Current Capability
電流範圍 2～2000A、容量範圍 0.3～1700kVA 均可依需求客製，適用於從實驗室到大型工業設備之各類應用。
Customizable current range from 2 to 2000A and capacity from 0.3 to 1700kVA, suitable for applications from laboratories to large-scale industrial equipment.
3. 歐盟 CE 安全認證 EU CE Safety Certification
符合 EN/IEC 61558-1、EN/IEC 61558-2-13 等國際安全規範，品質與安全兼具，滿足全球市場標準。
Compliant with international safety standards such as EN/IEC 61558-1 and EN/IEC 61558-2-13, ensuring both quality and safety for global market requirements.
4. 高等級絕緣導線 High-Grade Insulation Wiring
全系列採用符合 UL、JIS、NEMA、IEC 等國際標準線材，絕緣耐熱等級達 F 級（155°C）與 H 級（180°C），確保長時間穩定運行。
All models use wiring materials compliant with UL, JIS, NEMA, and IEC standards, with insulation rated Class F (155°C) and Class H (180°C) to ensure long-term stable operation.
5. 高可靠性與耐嚴苛環境 High Reliability in Harsh Environments
具備寬輸入電壓範圍、低損耗、高效率（≥98%）及接近 1 的功率因數，確保工業環境下持續穩定運行。
Features a wide input voltage range, low power loss, high efficiency (≥98%), and power factor close to 1, ensuring stable operation in demanding industrial environments.
6. L 型大容量專用結構設計 L-Type Large-Capacity Structure Design
相較同級容量產品，採用 L 型（Large Load）結構，體積更精巧、重量更輕、散熱更佳、整體效率更高。
Compared with standard units of the same capacity, the L-type (Large Load) structure offers a more compact size, lighter weight, improved heat dissipation, and higher overall efficiency.
7. 多功能智慧顯示介面 Multi-Functional Intelligent Display Interface
內建電錶可即時顯示電壓與電流數據，並可透過 RS-485 通訊介面連接電腦，支援多樣化測試與資料分析。
Built-in meters display real-time voltage and current data, with RS-485 communication for computer connection, supporting diverse testing and data analysis requirements.
8. 良好過載承受能力 Excellent Overload Capability
可承受額定值 10 倍 1 秒、3 倍 1 分鐘、2 倍 5 分鐘之短期過載，展現極高瞬時耐受性與可靠度。
Capable of withstanding short-term overloads of 10 times rated value for 1 second, 3 times for 1 minute, and 2 times for 5 minutes, offering exceptional instantaneous tolerance and reliability.
適用範圍 Applications
實驗室
Laboratories
電力設備測試
Power equipment testing
固態變壓器測試
Solid-state transformer testing
電源測試
Power supply testing
大容量變壓器測試
High-capacity transformer testing
耐壓測試
Withstand voltage (dielectric) testing
馬達測試
Motor testing
溫升測試
Temperature rise testing
高低壓配電盤負載測試
High and low voltage switchgear load testing
設備與儀器負載性能測試
Equipment and instrument load performance testing
工業電器產線
Industrial electrical production lines
