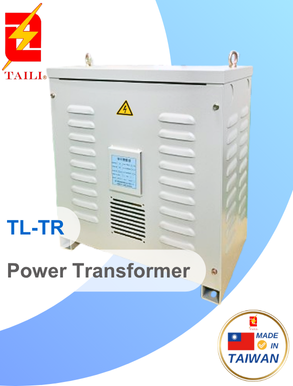

泰利電器TAILI-產品型錄-電力變壓器(TL-TR)

泰利電器TAILI-Catalog-Power Transformer(TL-TR)

技術規範 Technical information

特殊規格皆可訂製 Custom specifications available

形式 Type	一般型General 隔離型Isolated(I) 自耦型Auto(A)
線材選用 Wire material	鋁製Aluminum 銅製Copper(C)
頻率 Frequency(Hz)	50 60 50/60
相數/出線 Phase(Φ)/Wire(W)	1Φ/2W 1Φ/3W 3Φ/3W 3Φ/4W
接線方式 Connection	1Φ 3Φ Delta, Wye
額定電壓 (特殊規格電壓皆可製作) Rated voltage (Custom voltage specifications available)	高壓側電壓 High voltage(V)	低壓側電壓 Low voltage(V)
	單相Single phase(1Φ): 200 220 240 三相Three phase(3Φ): 220 380 400 415 440 460 480	單相Single phase(1Φ): 100, 100/200, 100-0-100 110, 110/220, 110-0-110 120, 120/240, 120-0-120 三相Three phase(3Φ): 110 220 190/110 199/115 200/115 208/120 220/127 380/220
阻抗電壓 Impedance voltage(%)	≤4.5(3~25KVA) 3~5.5(30~250KVA)
容量 LOAD(KVA)	3~2000KVA 更大容量皆可製作 Larger load available
冷卻方式 Cooling method	乾式風冷式 Forced Air Cooling(AF)
效率 Efficiency	>97%
絕緣等級 Insulation level	A(105°C), B(130°C), F(155°C), H(180°C) (依規格而定Depend on specification)
線圈溫升 Coil temperature rise	50K(A), 75K(B), 100K(F), 125K(H)
AC耐壓測試 AC. withstand voltage	3KV
噪音規範 Noise level	0~50KVA: 50dBa 51~150KVA: 55dBa 151~250KVA: 58dBa
溫度規範 Temperature	0~55°C (40°C以上允許負載遞減) (For ambient temperatures exceeding 40°C, load current must be derated.)
濕度規範 Humidity	20~95% 非凝結Non-condensing
國際防護等級 International protection marking	IP20 IP21 IP22
國際標準規範 International standard specifications	EN/IEC 60076-11/61558  CNS 13390  JIS C 4306  UL 1561/5085  NEMA ST 20
線材國際標準規範 Wiring materials compliant with international standards	UL E84081  UL E84201  JIS 3202  NEMA MW  IEC 60317
選配項目 Options	C: 鐵殼Iron Casing S: 密封式Sealed Type P: 可攜式Portable Type M: 壁掛式Wall-Mounted Type -E: 機箱Enclosure F: 散熱風扇Cooling Fan W: 活動輪子Casters/Wheels I: 指示燈Indicator Light T: 端子保護蓋Terminal Protection Covers N: 電線Wires, 插座sockets, and 插頭plugs B: 模殼式斷路器MCCB (Molded Case Circuit Breaker)

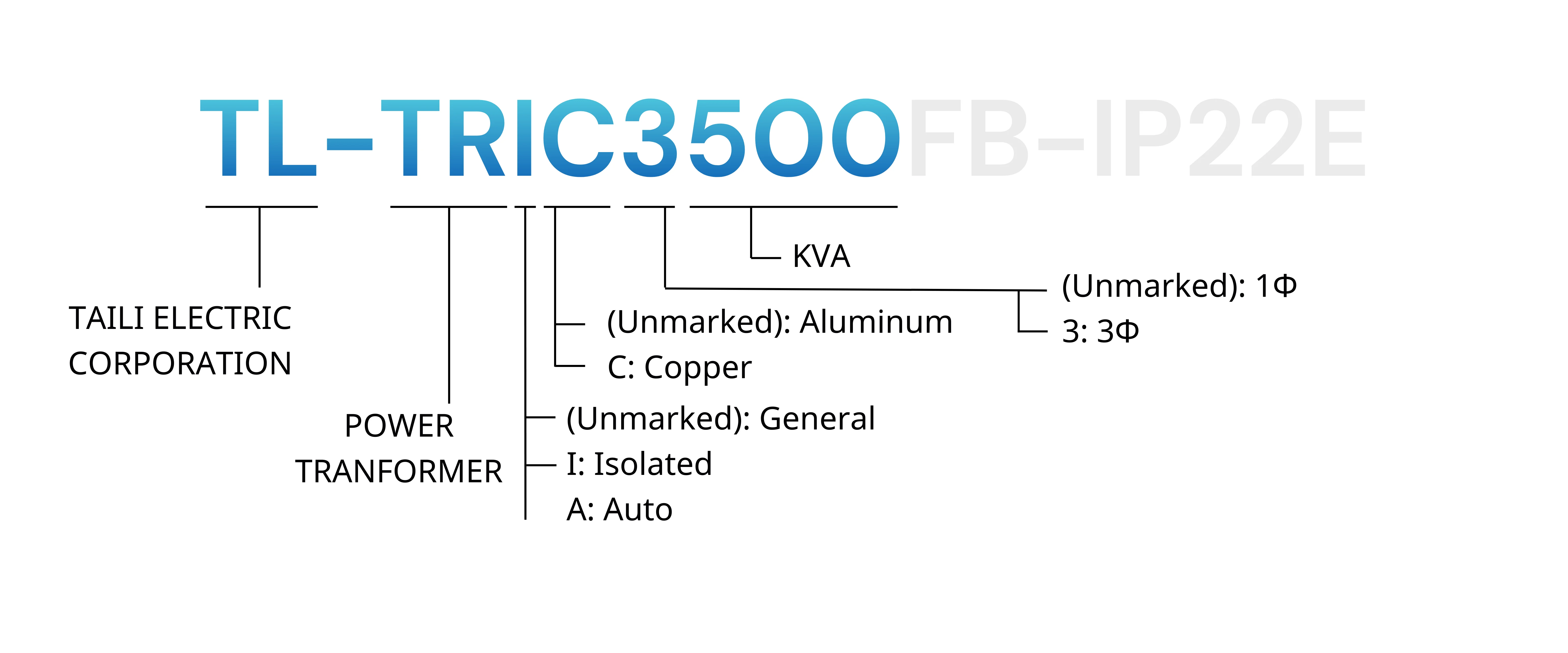

型號命名規則 Type number designations

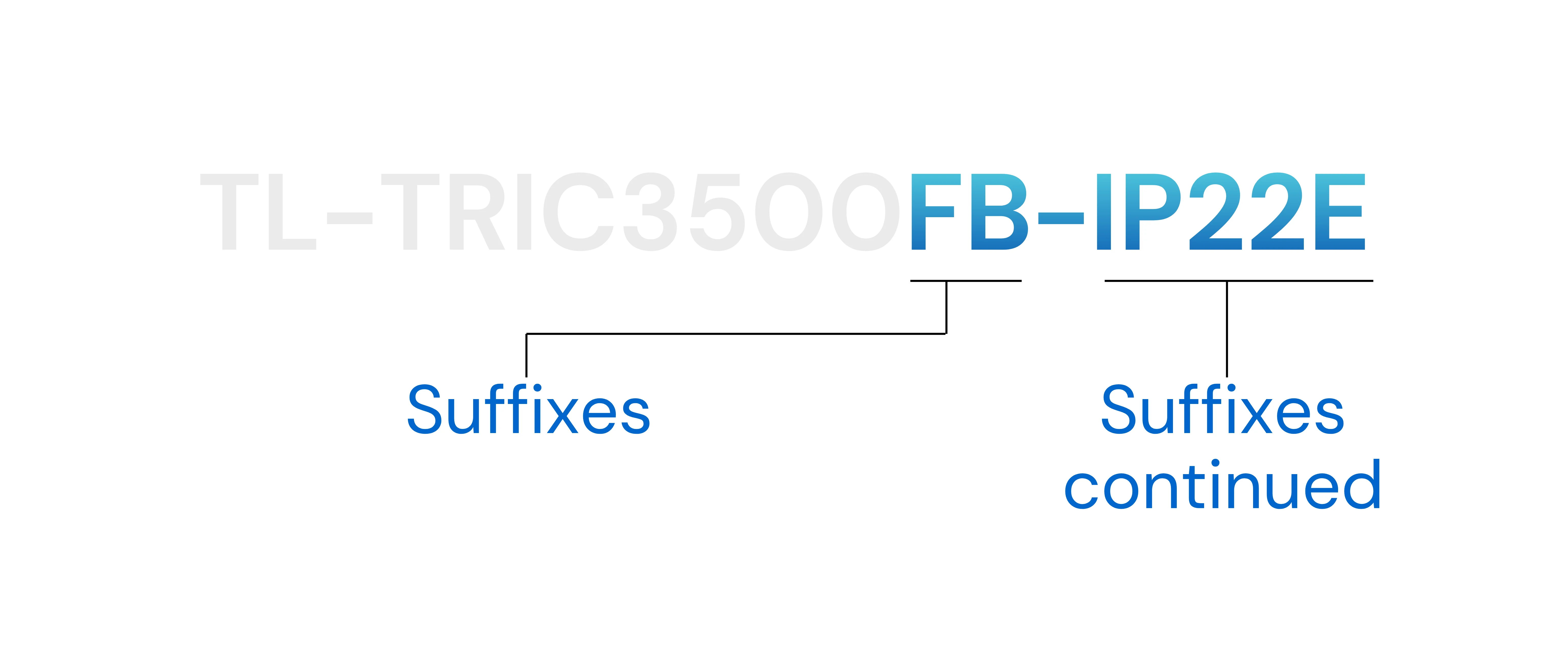

泰利電器TAILI研發之 TL-TR 電力變壓器 提供多種不同的設計與配置。這些型號可透過在基本型號後添加以下 後綴（suffix）及後綴延伸 ( suffix continued ) 來加以識別。
TAILI's TL-TR Power Transformers are available in a variety of designs and configurations. These types can be identified by appending the following “suffixes” and “suffixes continued” to the
basic type number.



產品特點 Features

1. 30年專業經驗與100%台灣製造 30 Years of Expertise & 100% Made in Taiwan
承襲超過30年的設計製造經驗，堅持從原料挑選到產組裝全製程100%台灣製造，為CNC機台及產業設備提供最穩定可靠的電力解決方案。
Inheriting over 30 years of design and manufacturing experience, we insist on 100% Taiwan manufacturing for the entire process, from raw material selection to final assembly, providing the most stable and reliable power solutions for CNC machines and industrial equipment.

2. 製作廣泛容量配置與客製化設計 Wide Range of Capacities & Customization
產品線涵蓋單相及三相配置，容量範圍從 3 KVA至2000KVA，提供一般型、隔離型、自耦式變壓器及抗流圈，滿足多元場域需求。
The product line covers single-phase and threephase configurations, with capacities ranging from 3 KVA to 2000 KVA. We offer generalpurpose, isolation, auto-transformers, and reactors to meet diverse application requirements.

3. 嚴選高導磁矽鋼片降低鐵損 Selected High-Permeability Silicon Steel to Reduce Iron Loss
 採符合 JIS C 2552 及 CNS 7217 規範之國內高導磁矽鋼片，大幅降低鐵損，提升磁通密度，確保變壓器核心的高效能運作。
Utilizing high-permeability domestic silicon steel that complies with JIS C 2552 and CNS 7217 standards to significantly reduce iron loss, enhance magnetic flux density, and ensure high-efficiency operation of the transformer core.

4. 頂級銅線與含浸處理  Premium Copper Wire & Impregnation Treatment
選用通過國際認證的台灣一級大廠高純度銅線，搭配專業含浸烘乾處理，有效減少銅損並全面降低空載、負載及無載損失。
We select high-purity copper wire from top-tier, internationally certified Taiwanese manufacturers, combined with professional impregnation and baking treatment, to effectively minimize copper loss and comprehensively reduce no-load, load, and stray losses.

5. 節能設計超高效率達97% Energy-Saving Design with Ultra-High Efficiency up to 97%
科學化的結構設計實現高達 97% 以上的運作效率，有效降低雜散電容與洩漏電抗，將自身損耗降至最低，幅提升能源使用效益。
Scientific structural design achieves an operating efficiency of over 97%, effectively reducing stray capacitance and leakage reactance, minimizing self-loss, and substantially enhancing energy utilization efficiency.

6. 精密電壓調整率控制 Precision Voltage Regulation Control
具備優異的電壓穩定性，將電壓變動率嚴格控制在 1%~1.5% 以內，確保敏感的測試設備與精密機台獲得最穩定的電力供應。
 Featuring excellent voltage stability, the voltage variation rate is strictly controlled within 1% to 1.5%, ensuring the most stable power supply for sensitive testing equipment and precision machinery.

7. 卓越絕緣等級耐高溫運作 Superior Insulation Class for High-Temperature Operation
提供從 A 級 (105°C)、B級 (130°C)、F級 (155°C) 到高規格 H 級(180°C) 的多重絕緣等級選擇，即使在嚴苛的高溫工業環境下，也能確保設備安全長效運行。
Offering multiple insulation classes from Class A (105°C), Class B (130°C), Class F (155°C) to high-specification Class H (180°C), ensuring safe, long-term operation even in severe high-temperature industrial environments.

8. 符合全球國際安規標準 Compliance with Global International Safety Standards
產品嚴格遵循 IEC/EN 60076/61558、UL 1561/5085、NEMA ST 20 及 JIS C 4306 等主流規範，是設備進軍全球市場的品質保證。
Products strictly adhere to major standards such as IEC/EN 60076/61558, UL 1561/5085, NEMA ST 20, and JIS C 4306, serving as a quality assurance for equipment entering the global market.

9. 優異的雜訊抑制與抗干擾 Excellent Noise Suppression and Anti-Interference
獨特的抗干擾設計能有效抑制輸入端雜訊，阻絕電磁干擾，為精密CNC 機台與自動化控制系統提供純淨的電力品質。
The unique anti-interference design effectively suppresses input noise and blocks electromagnetic interference (EMI), providing pure power quality for precision CNC machines and automated control systems.

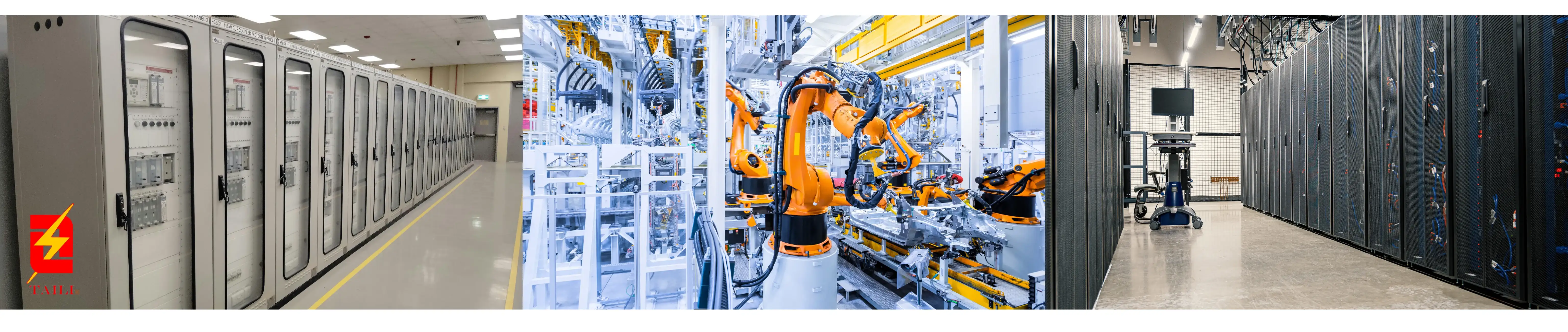

10. 專注工控與測試設備應用 Dedicated to Industrial Control & Testing Equipment Applications
專為嚴苛的產業環境打造，是各類自動化廠房、CNC 加工中心及高精密測試設備最堅實的電力後盾，確保製程不中斷。
Specifically engineered for demanding industrial environments, serving as the solid power backbone for various automation plants, CNC machining centers, and high-precision testing equipment, ensuring uninterrupted processes.
