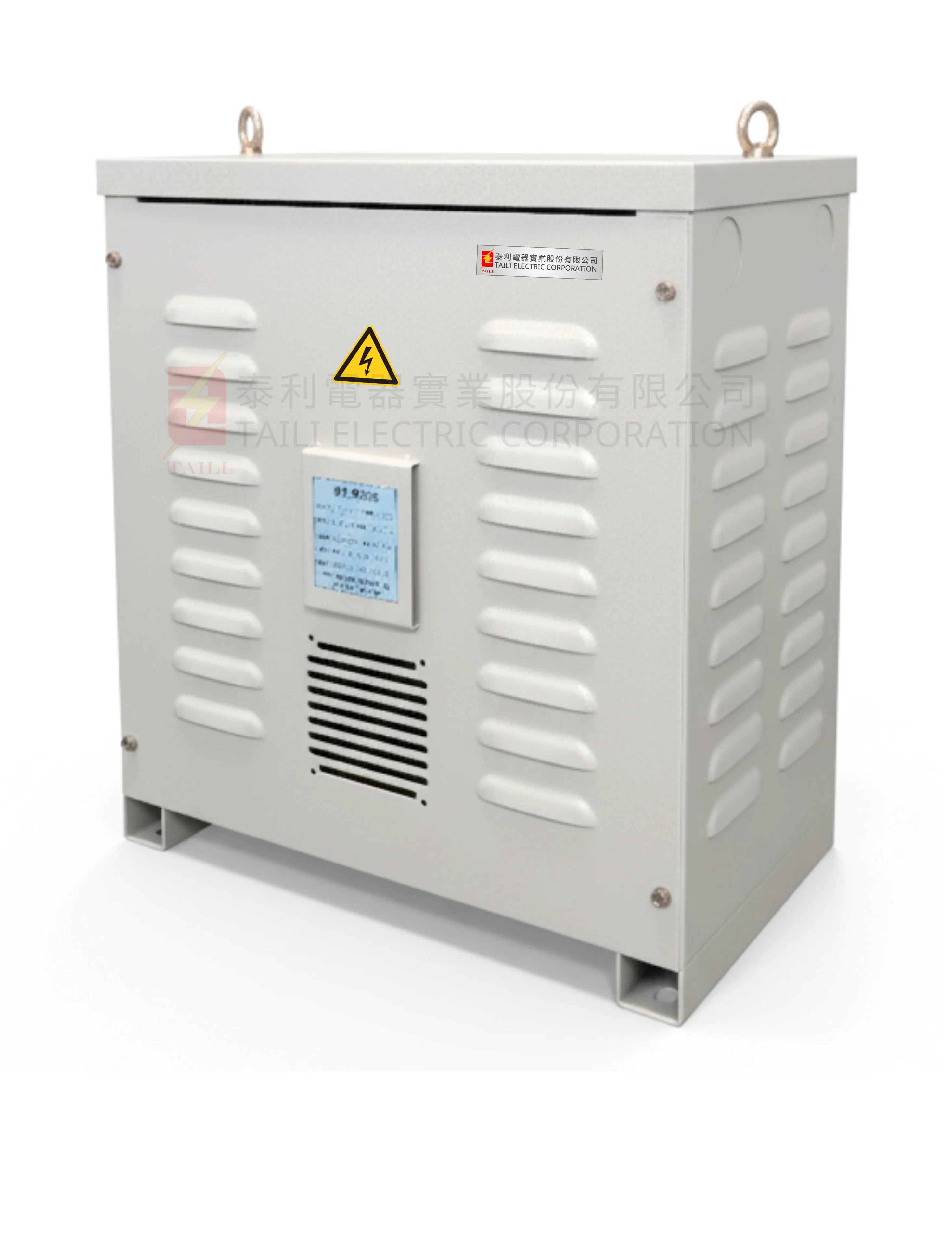

電力變壓器 (TL-TR)
Power Transformer (TL-TR)

泰利電器之電力變壓器(TL-TR)為 CNC 機台及各類產業設備專用變壓器,擁有超過 30 年的設計與製造經驗,結合專業研發團隊與嚴格的品質管制,造就出穩定且高效的產品。專業生產各式變壓器,包括單相與三相變壓器、自耦式變壓器、隔離變壓器、穩壓器、不斷電系統專用變壓器,以及各式電感器與抗流圈等。亦可依客戶需求,製造各種容量與規格的特殊變壓器,滿足多元應用所需。
TAILI’s Power Transformer (TL-TR) is specifically designed for CNC machines and various types of industrial equipment. With over 30 years of experience in transformer design and manufacturing, and supported by a professional R&D team and strict quality control, we deliver products that are both stable and highly efficient. We specialize in producing a wide range of transformers, including single-phase and three-phase transformers, autotransformers, isolation transformers, voltage stabilizers, UPS-specific transformers, as well as inductors and reactors. Custom transformers with different capacities and specifications can also be manufactured to meet the diverse needs of our customers.

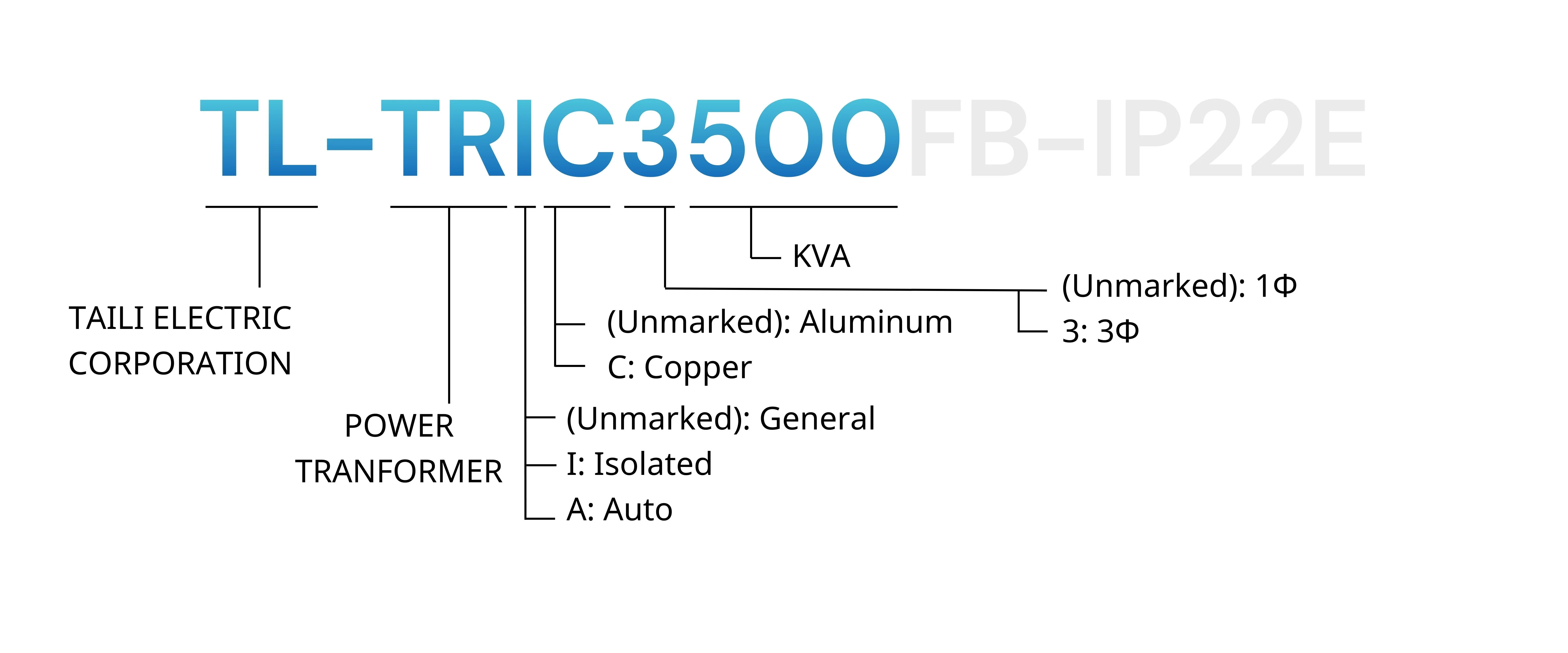

規格總表&技術規範
Specification& Technical Information

( 特殊規格皆可訂製 Special specifications can be customized )



規格總表&技術規範

Specification& Technical Information



產品特點
Features

1. 標準化設計 Standardized Design
科學合理的設計,將電壓變動率控制在1%~1.5%以內。
Scientifically reasonable design allowing control of voltage change rate within 1% - 1.5% range.


2. 日本製矽鋼片
Japanese-Made Silicon Steel Core
採用日本川崎公司/新日鐵全新矽鋼片製作,有效減少鐵損,降低激磁湧流,提高效率。
Manufactured of brand new silicone steel sheet of Shin Nippon, Kawasaki, Japan that effectively reduces iron loss, reducing field inrush current and increase efficiency.


3. 高品質用料
High-Quality Materials
採用高純度進口銅線製作,自身損耗降至最小,大大提高功效。
Made of imported high purity copper wire that minimizes own loss rate and greatly increase effectiveness.


4. 高強度及絕緣耐用性
High Mechanical Strength and Insulation Durability
使用日本AROMA公司改良A型及DOPONT公司NOMEX絕緣紙為主要絕緣材料加強通風散熱設計,提高了耐高壓強度、絕緣等級,延長使用壽命。
Adopt AROMA, Japan improved A type and DOPONT Nomex insulating paper as the main insulating materials and enhanced ventilation and heat sink design to increase the high voltage resisting strength and insulation class and therefore extend the service life.


5. 高效率
High Efficiency
高效率設計,達97%以上,有效降低雜散電容、洩漏電抗及抑制輸入端之雜訊。
High efficiency design for more than 97% that effectively reduce stray capacity, leak impedance and inhibit input end noise.


6. 優良諧波濾除能力
Excellent Harmonic Suppression Capability
引用K係數衡量抗諧波能力,特殊設計隔離變壓器濾除三次諧波及多輸出隔離變壓器濾除五、七、十七、十九倍頻諧波(選用)。
Adopted K coefficient in measuring harmonic wave ability; specially designed isolated transformer in filtering off tertiary harmonic wave and multiple output isolated transformer filters off 5, 7,17 and 19 X frequency harmonic wave (Optional).

適用範圍
Applications

CNC設備
CNC Equipment

AI設備
AI Equipment

SMT設備
SMT

基地台設備
Base Station Equipment

工業自動化
Industrial Automation

實驗室
Laboratory


主要零件功能說明
Function Description

變壓器專用線架
Transformer Specific Bobbin

本公司開發各式變壓器專用線架,可提高生產效率及整體美觀
Transformer specific bobbin developed by the Company is capable of increasing production efficiency and overall beauty.

真空寒浸設備
Vacuum Impregnating Equipment

此設備配合專業烤箱,可抑制變壓器的噪音,並增加變壓器的絕緣效果
Combine with special oven, this equipment can inhibit the noise of transformer and increase insulation effect of transformer.

線圈整線機台
Coil Sorting Machine

由本公司自行研發設計的整線機,目的在使變壓器線圈整齊劃一,並提高性能
The wire sorting machine developed by the Company is to tidy the coil of transformer to increase efficacy.

變壓器主體
Transformer Main Body

主體設有接電端子台,明確標示各種電壓接線,一目了然
Main body is fitted with wiring terminal which specifically marked with various voltage wiring, which is specific and clear.

專用接地螺絲
Specific Grounding Screw

接地攸關設備、人員之安全,需有明白與確實的接地結構
Grounding is related with safety of equipment and person, which shall have specific and correct grounding mechanism.
