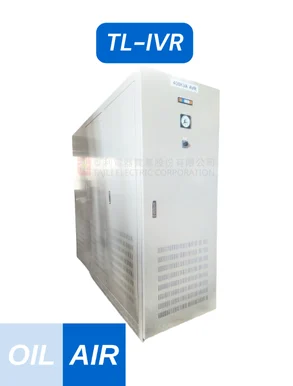

感應電子式穩壓器 (乾式風冷式)
Induction Voltage Regulator, IVR (Air-forced Cooling Type)

TL-IVR

感應電子式穩壓器 (乾式風冷式) Induction Voltage Regulators (Air-forced Cooling Type)

感應式電壓調整器(IVR)通常搭配自動穩壓功能使用,因此又稱為感應電子式穩壓器、感應式自動穩壓器或誘導式自動穩壓器(AVR / AIVR)。泰利電器(TAILI)所推出的TL-IVR採用符合JIS C2320與IEC60296等國際標準之高品質絕緣油,確保產品運行穩定、安全可靠。其油入自冷式型號容量範圍涵蓋單相 3 KVA 至三相 30000 KVA,輸入電壓 110~12000V;乾式風冷式則提供 10~500 KVA 容量,輸入電壓範圍 110~6600V,穩定輸入電壓範圍從 ±15% 至 ±50% 皆可依客戶需求訂製。多年來,泰利電器致力於提供高品質的調壓測試與穩壓設備,服務遍及全球各產業,包括海外大使館、公營電力單位、大型製造業及化工產業廠房,深受客戶信賴與肯定。
The Induction Voltage Regulator (IVR) is typically equipped with an automatic voltage regulation function, and is therefore also known as an Induction Electronic Voltage Regulator, Induction Automatic Voltage Regulator, or Automatic Induction Voltage Regulator (AVR / AIVR). The TL-IVR series manufactured by TAILI ELECTRIC CORPORATION adopts high-quality insulating oil that complies with international standards such as JIS C2320 and IEC 60296, ensuring stable performance and operational reliability. The oil-immersed cooling type is available in capacities ranging from single-phase 3 KVA to three-phase 30,000 KVA, with input voltages from 110 to 12,000 V. The air-forced cooling types are offered from 10 to 500 KVA, with input voltages from 110 to 6,600 V. The range of stabilizing input voltage can be customized from ±15% to ±50%, according to customer requirements. With decades of experience, TAILI ELECTRIC CORPORATION has been committed to providing high-quality voltage regulating and testing equipment to industries worldwide. Our clients include foreign embassies, public power utilities, large-scale manufacturing facilities, and chemical industry plants, earning us long-term trust and recognition across global markets.


規格總表& 外型設計
Specification& Exterior



相數
PHASE(Φ)

單相SINGLE PHASE、三相THREE PHASE

頻率
FREQUENCY(Hz)

47~63Hz

輸入電壓
I/P(V)

110~6600V

穩定輸入電壓範圍
THE RANGE OF STABLIZING I/P VOLTAGE

+/-15~50%

輸出電壓可調範圍
THE ADJUSTED RANGE OF O/P VOLTAGE

+/-2%

輸出精度
O/P ACCURACY

+/-0.8~3%

總諧波失真率
Waveform Distortion

0

容量
LOAD(KVA)

10~500KVA

反應時間 Response time

0.5~2s (depend on the range of voltage)

效率
EFFICIENCY

>97%

調整方式
ADJUSTMENT METHODS

(1) 手動型: 可使用手輪旋轉以調整所需之電壓
Manual Type: Voltage adjustment is performed by rotating a handwheel.

(2) 電動型: 使用工業用遙控器操控以調整所需之電壓
Motorized Type: Voltage adjustment is controlled via an industrial remote controller.

(3) 自動型: 監測偏離值以達成自動調整電壓
Automatic Type: Voltage is automatically adjusted by monitoring deviation values.

欠相保護
UNDER PHASE

LED Display (Buzzer warning)

超載保護
OVER LOAD

LED Display (Buzzer warning)

油量不足警示
OIL EMPTY

LED Display (Buzzer warning)

過熱保護
OVER TEMPERATURE

LED Display (Buzzer warning)

噪音規範
NOISE LEVEL

<40dB

溫度規範
TEMPERATURE

-20~+40°C

濕度規範
HUMIDITY

0- 90% non-condensing



特殊規格皆可訂製 Special specifications can be customized
實際外型式樣須根據客戶規格、使用場所、安全考量、其他特殊需求等進行規劃、設計,以達到設備最佳效率以及符合使用效益。
The actual design and appearance must be planned and developed based on customer specifications, the usage environment, safety considerations, and other special requirements to achieve optimal equipment efficiency and meet operational needs.
