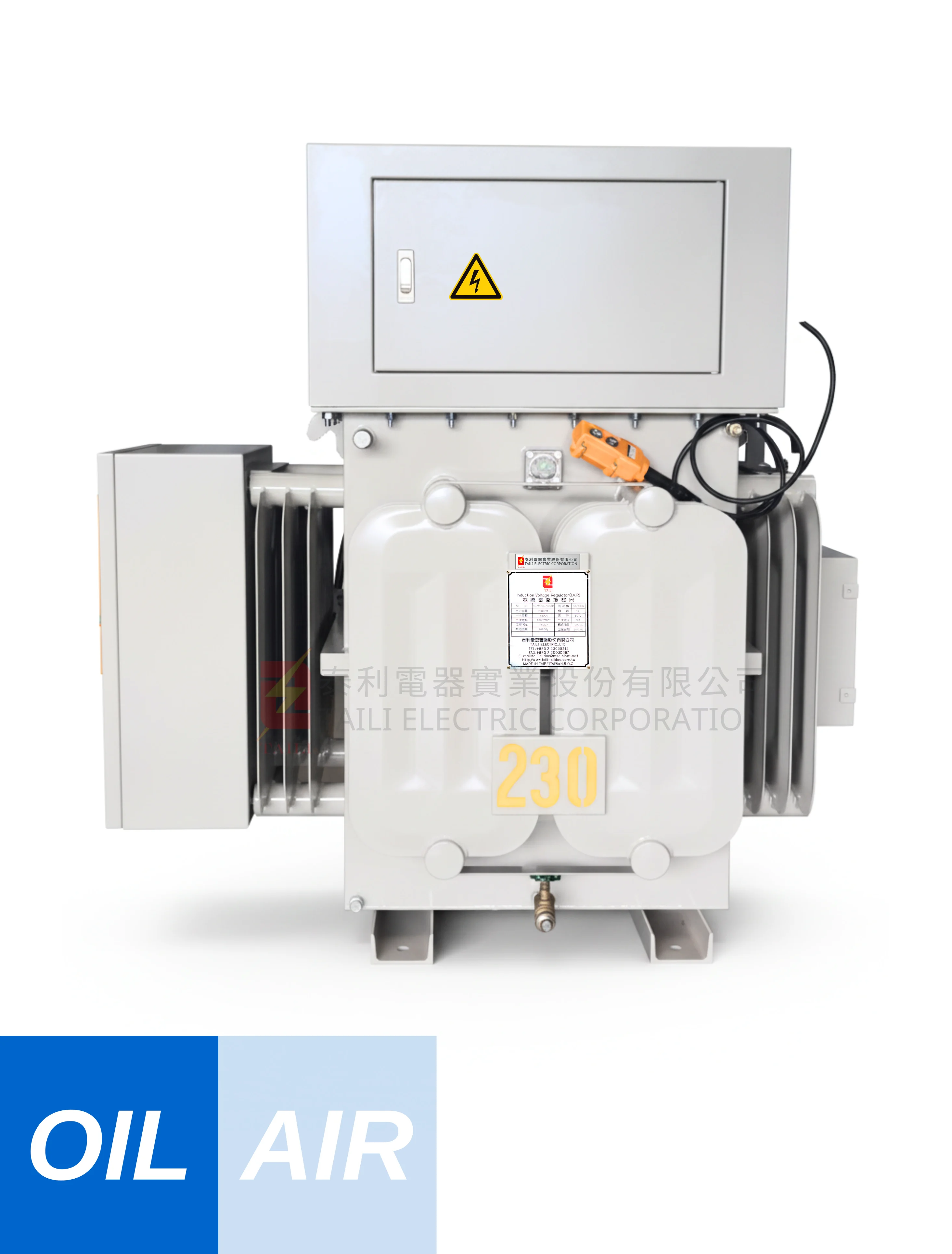

感應電子式穩壓器 (油入自冷式)
Induction Voltage Regulator, IVR (Oil-immersed Cooling Type)

TL-IVR

感應電子式穩壓器 (油入自冷式) (TL-IVR) Induction Voltage Regulator (Oil-immersed Cooling Type)

感應式電壓調整器(IVR)通常搭配自動穩壓功能使用,因此又稱為感應電子式穩壓器、感應式自動穩壓器或誘導式自動穩壓器(AVR / AIVR)。泰利電器(TAILI)所推出的TL-IVR採用符合JIS C2320與IEC60296等國際標準之高品質絕緣油,確保產品運行穩定、安全可靠。其油入自冷式型號容量範圍涵蓋單相 3 KVA 至三相 30000 KVA,輸入電壓 110~12000V;乾式風冷式則提供 10~500 KVA 容量,輸入電壓範圍 110~6600V,穩定輸入電壓範圍從 ±15% 至 ±50% 皆可依客戶需求訂製。多年來,泰利電器致力於提供高品質的調壓測試與穩壓設備,服務遍及全球各產業,包括海外大使館、公營電力單位、大型製造業及化工產業廠房,深受客戶信賴與肯定。
The Induction Voltage Regulator (IVR) is typically equipped with an automatic voltage regulation function, and is therefore also known as an Induction Electronic Voltage Regulator, Induction Automatic Voltage Regulator, or Automatic Induction Voltage Regulator (AVR / AIVR). The TL-IVR series manufactured by TAILI ELECTRIC CORPORATION adopts high-quality insulating oil that complies with international standards such as JIS C2320 and IEC 60296, ensuring stable performance and operational reliability. The oil-immersed cooling type is available in capacities ranging from single-phase 3 KVA to three-phase 30,000 KVA, with input voltages from 110 to 12,000 V. The air-forced cooling types are offered from 10 to 500 KVA, with input voltages from 110 to 6,600 V. The range of stabilizing input voltage can be customized from ±15% to ±50%, according to customer requirements. With decades of experience, TAILI ELECTRIC CORPORATION has been committed to providing high-quality voltage regulating and testing equipment to industries worldwide. Our clients include foreign embassies, public power utilities, large-scale manufacturing facilities, and chemical industry plants, earning us long-term trust and recognition across global markets.


規格總表 Specification

( 特殊規格皆可訂製 Special specifications can be customized )
下列內容為感應式電壓調整器IVR搭配穩壓功能之產品規格
The following outlines the product specifications of an Induction Voltage Regulator (IVR) integrated with voltage stabilization functions.

相數 Phase(Φ) Single phase(1Φ)
Three phase(3Φ)
頻率 Frequency(Hz) 40~60Hz
輸入電壓 I/P(V) 110~12000V
穩定輸入電壓範圍 The range of stabilizing I/P voltage ±15~50%
輸出電壓可調範圍 The adjusted range of O/P voltage ±2%
輸出精度 O/P accuracy ±0.8~3%
總諧波失真率 Waveform Distortion 0
容量 Capacity(KVA)  1Φ: 3~1000KVA
3Φ: 5~30000KVA
反應時間 Response time 0.5~2s
(取決於電壓範圍depend on the range of voltage)
效率 Efficiency >97%
調整方式 Adjustment methods 手動型: 可使用手輪旋轉以調整所需之電壓
Manual Type: Voltage adjustment is performed by rotating a handwheel.

電動型: 使用工業用遙控器操控以調整所需之電壓
Motorized Type: Voltage adjustment is controlled via an industrial remote controller.

自動型: 監測偏離值以達成自動調整電壓
Automatic Type: Voltage is automatically adjusted by monitoring deviation values.
欠相保護 Phase failure protection LED警示 (蜂鳴器警報裝置)
LED Display (Buzzer warning)
超載保護 Overload protection
油量不足警示 Oil empty indicator
過熱保護 Over temperature protection
噪音規範 Noise level <40dB
溫度規範 Temperature -20~+40°C
濕度規範 Humidity 0- 90% 非凝結non-condensing
絕緣油國際標準認證 International Standard Certification for Insulating Oil JIS C2320
IEC 60296

外型設計 Exterior

實際外型式樣須根據客戶規格、使用場所、安全考量、其他特殊需求等進行專案規劃、設計,以達到設備最佳效率以及符合使用效益。
The actual design and appearance must be planned and developed based on customer specifications, the usage environment, safety considerations, and other special requirements to achieve optimal equipment efficiency and meet operational needs.

product-banner-IVR


適用範圍 Applications

生產製造產線
Production and Manufacturing Lines

UPS 不斷電供電系統
UPS Uninterruptible Power Supply Systems

電信傳播產業
Telecommunication and Broadcasting Industry

塑膠射出成型設備
Plastic Injection Molding Equipment

工具機
Machine Tools

電梯系統
Elevator Systems

馬達測試
Motor Testing

建築施工與結構工程
Building Construction and Structural Engineering

機電整合系統
Mechatronic Integration Systems

電熱設備
Electric Heating Equipment

醫療用設備與儀器裝置
Medical Equipment and Instruments

設備與儀器負載性能測試
Equipment and Instrument Load Performance Testing

冷凍空調設備
Refrigeration and Air Conditioning Equipment

CNC 電腦數位控制設備
CNC Computer Numerical Control Equipment
