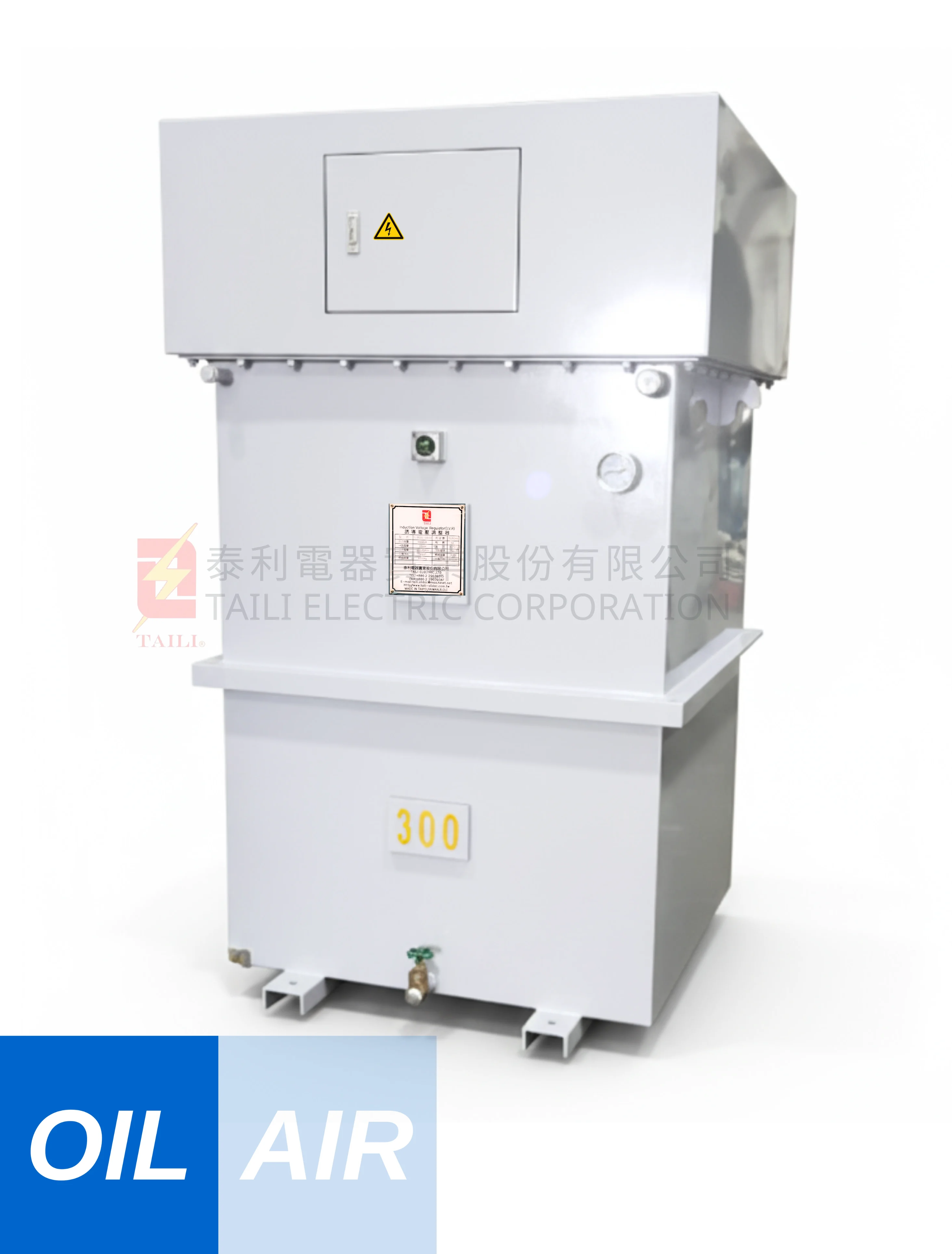

感應電子式穩壓器 (油入自冷式) (TL-IVR)
Induction Voltage Regulators (Oil-immersed Cooling Type) (TL-IVR)

感應式電壓調整器(IVR)通常搭配自動穩壓功能,故稱感應電子式穩壓器感應式自動穩壓器、誘導式自動穩壓器(AVR)(AIVR)。功能與電源電壓調整器SLIDAC相同,乃採定子、轉子感應方式,調整相位角度,於負載中無接點無段調整。使用線性比較邏輯電路,檢出輸出電壓自動穩定電壓、平衡電壓,故名為感應電子式穩壓器。
Induction Voltage Regulator (IVR) is usually equipped with an automatic voltage stabilization function, hence it is also called an Induction Electronic Voltage Stabilizer or Automatic Induction Voltage Regulator (AVR)(AIVR). The function of IVR is the same as the variable transformer(SLIDAC), which is the stator and rotor induction method. The phase angle is adjusted, and the load has no contact and stepless adjustment. The linear comparison logic circuit is used to detect the output voltage to automatically stabilize the voltage and balance the voltage, so it is called an IVR.


規格總表& 外型設計
Specification& Exterior

( 特殊規格皆可訂製 Special specifications can be customized )





容量
Capacity(KVA)
相數
Phase(Φ)
調整機構
Adjustment mechanism
寬度
Width(mm)
深度
Depth(mm)
高度
Height(mm)
重量
Weight(kg)
80 單相軸心
Single-phase, coaxial
1020 1020 1350 860
120 1020 1020 1470 1050
160 1100 1100 1470 1330
200 1100 1100 1670 1400
240 1200 1200 1670 1550
320 1200 1200 1670 1770
400 三相同軸
Three-phase, coaxial
1500 1500 1650 2200
480 1550 1550 1650 2400
600 1600 1600 1850 2600
800 1600 1600 1950 3200
1000 1600 1600 1950 3500
1200 1700 1700 1950 3800
1600 1700 1700 1950 4400
2000 1800 1800 1950 5000
2400 1800 1800 1950 5600
特殊規格皆可訂製 Special specifications can be customized


實際外型式樣須根據客戶規格、使用場所、安全考量、其他特殊需求等進行規劃、設計,以達到設備最佳效率以及符合使用效益。
The actual design and appearance must be planned and developed based on customer specifications, the usage environment, safety considerations, and other special requirements to achieve optimal equipment efficiency and meet operational needs.
